RF8800
RF8800 is a 3D printer specially designed for large and medium-sized orthodontic dental mold manufacturers, using multi-matrix DLP technology, sinking component mode, 7 days *24 hours automatic printing. Compared with traditi More details
RF4030
Fast and efficient DLP technology printer, suitable for dental, orthopedic and other fields More details
-
-
3D Printer

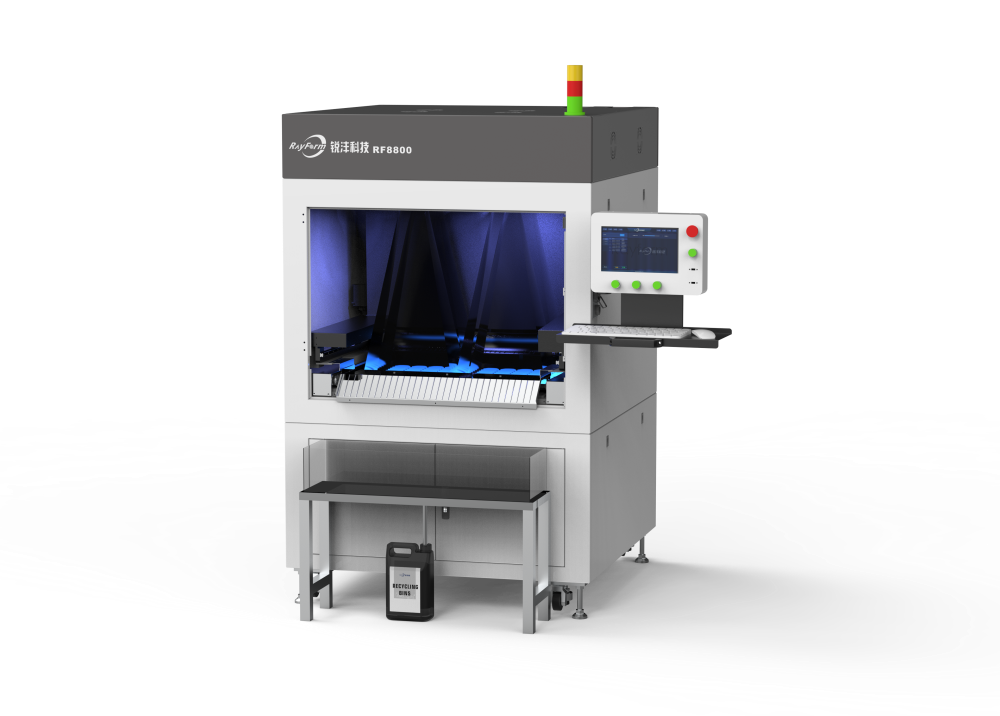

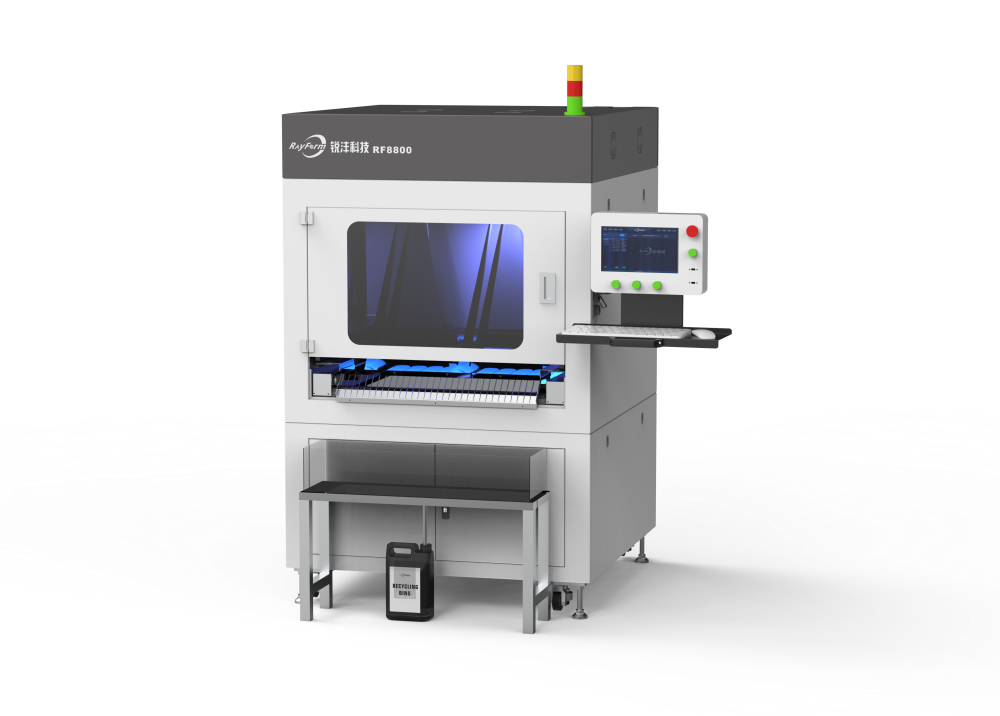

RF8800
Largest DLP build volume on the market 768x432x100 mm

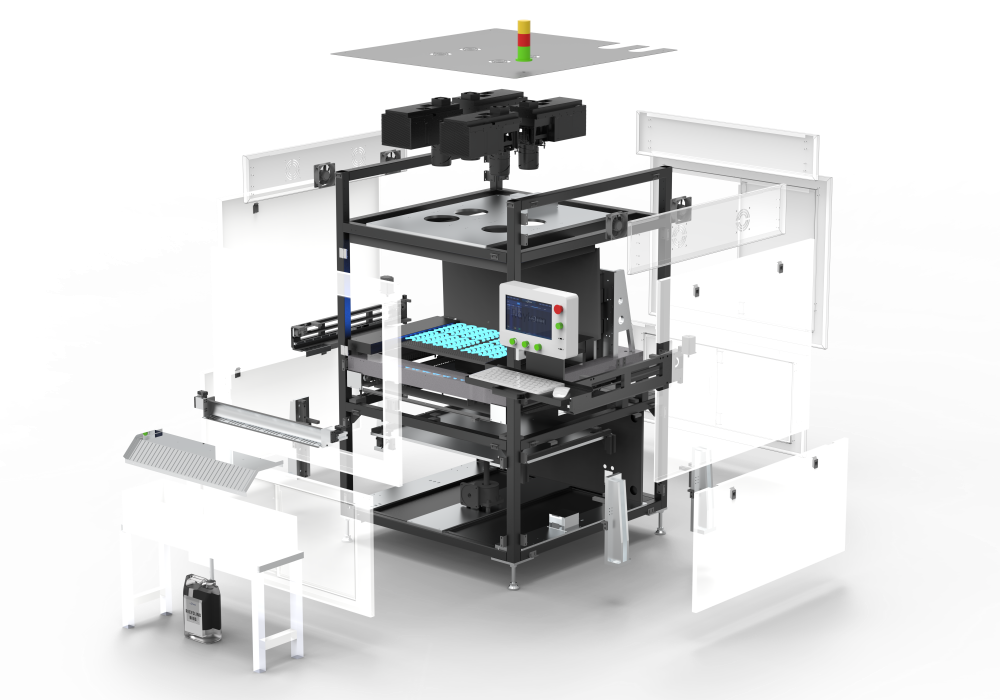

The RF8800 series 3D printers boast a fully automated system, featuring capabilities for automatic removal, sorting, refilling, task assignment, and printing. It adopts multi-matrix DLP technology, sinking platform mode, and its mechanical design innovative reduces the peeling force, safeguarding dental models, enhancing stability, and ensuring clean removal. Moreover, its superior design ensures high reliability, stability, and straightforward maintenance,the highest efficiency on the market.
Main Advantages
Advanced HADP™ technology, the largest DLP build volume 768*432mm
120 dental models printed in 45 minutes,the highest efficiency in mass production
7x24 hours unmanned-automated production with PMS
4x 4K DLP optical engines,each one with more than30,000 hours of life-time
RF8800 Series Specification
|
Printing Technology |
DLP |
|
Build Volume |
768x432x100 mm |
|
X-Y Resolution |
100/65 μm |
|
Build Precision |
80 μm |
|
Print Speed |
30mm/h |
|
Resolution |
3840 × 2160 HD |
|
Projection Mode |
Top-down Projection |
|
Network Type and Protocol |
WiFi, Ethernet Using MQTT, HTTP, TCP, UDP, FTP |
|
Power |
3.0kw |
|
Light Source Lifetime |
30,000 hours |
|
Temperature Range |
22–30 °C(72–86 °F) |
|
Relative Humidity |
< 55% |
|
Machine size(W x D x H) |
1240x1270x1930mm |
|
Machine weight |
800 KG |
|
Processing and Finishing |
Post-Curing Unit (optional) |
|
Warranty |
2 year |

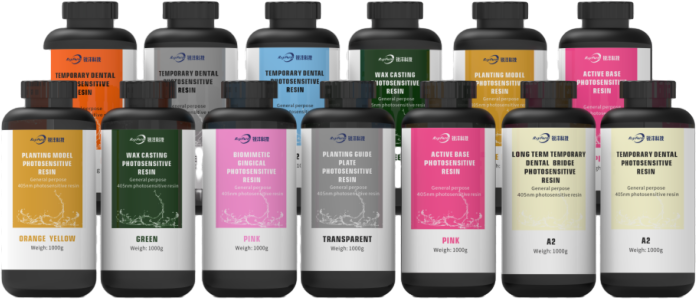

Relevant Resin
Rayform have developed high Temperature resistant resin, water washable resin and also washing-free resin for our printers,they are designed for the thermoforming process and easy post-processing.Such Material based on methacrylate resin for DLP with 385nm/ 405nm LED and LCD systems. High form, brake stability, abrasion, moisture, and light resistance along with a smooth matte surface finish, makes it perfect for dental model making.
