RF8800
RF8800 is a 3D printer specially designed for large and medium-sized orthodontic dental mold manufacturers, using multi-matrix DLP technology, sinking component mode, 7 days *24 hours automatic printing. Compared with traditi More details
RF4030
Fast and efficient DLP technology printer, suitable for dental, orthopedic and other fields More details
-
-
Printer

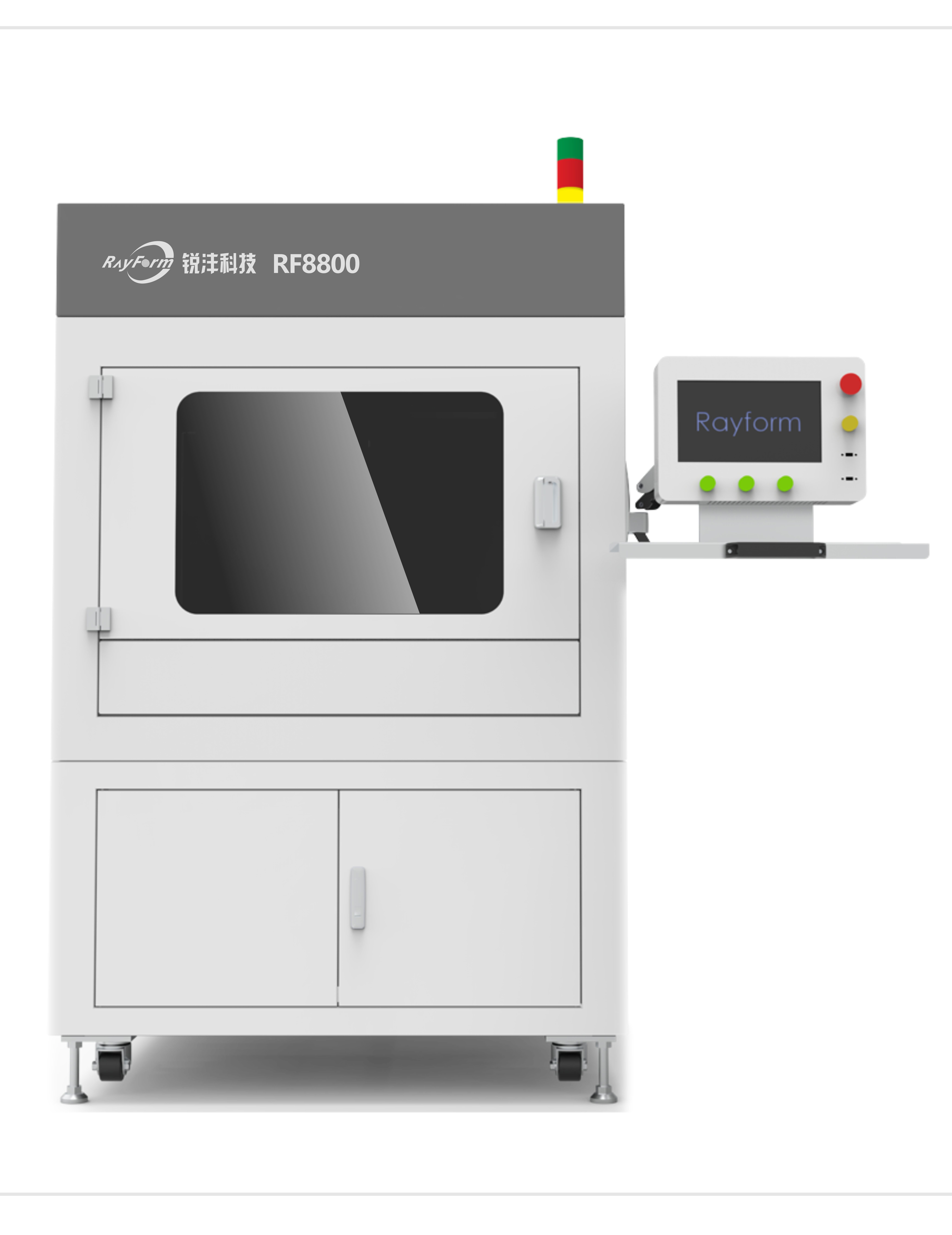

RF8800
Largest DLP build volume on the market 768x432x100 mm
The RF8800 series 3D printers boast a fully automated system, featuring capabilities for automatic removal, sorting, refilling, task assignment, and printing. It adopts multi-matrix DLP technology, sinking platform mode, and its mechanical design innovative reduces the peeling force, safeguarding dental models, enhancing stability, and ensuring clean removal. Moreover, its superior design ensures high reliability, stability, and straightforward maintenance,the highest efficiency in the market.
Main Features
01
Ultra-fast printing speed
about 4-8 times that of traditional printers
02
Higher success rate of Printing
above 99.9%
03
Fully automatic control
7 * 24 automatic printing
04
Save material
20%
Ultra-fast printing speed
about 4-8 times that of traditional printers
The printing area 768x432mm, is the largest volume among DLP printers, can print 100+ dental models at the same time. Fast printing speed, only takes 55 minutes to complete dental mold printing once (can speed up more up to the resin material); Industrial-grade equipment: stable and reliable performance, ensure its production capacity and quality.
Made it possible by:
Mask exposing way of DLP technology
Large printing area with HADPtm technology
Automatic unloading technology
Higher Pass rate of Printing
above 99.9%
With the mode of sinking platform, the printer avoids the problem of parts dropping during printing, which is common on conventional DLP printer with pull up mode. Meanwhile, the fast printing speed of DLP technology is maintained!
Made it possible by:
Mode of Sinking platform
Matching resin from Rayform
Fully automatic control
7 * 24 automatic printing

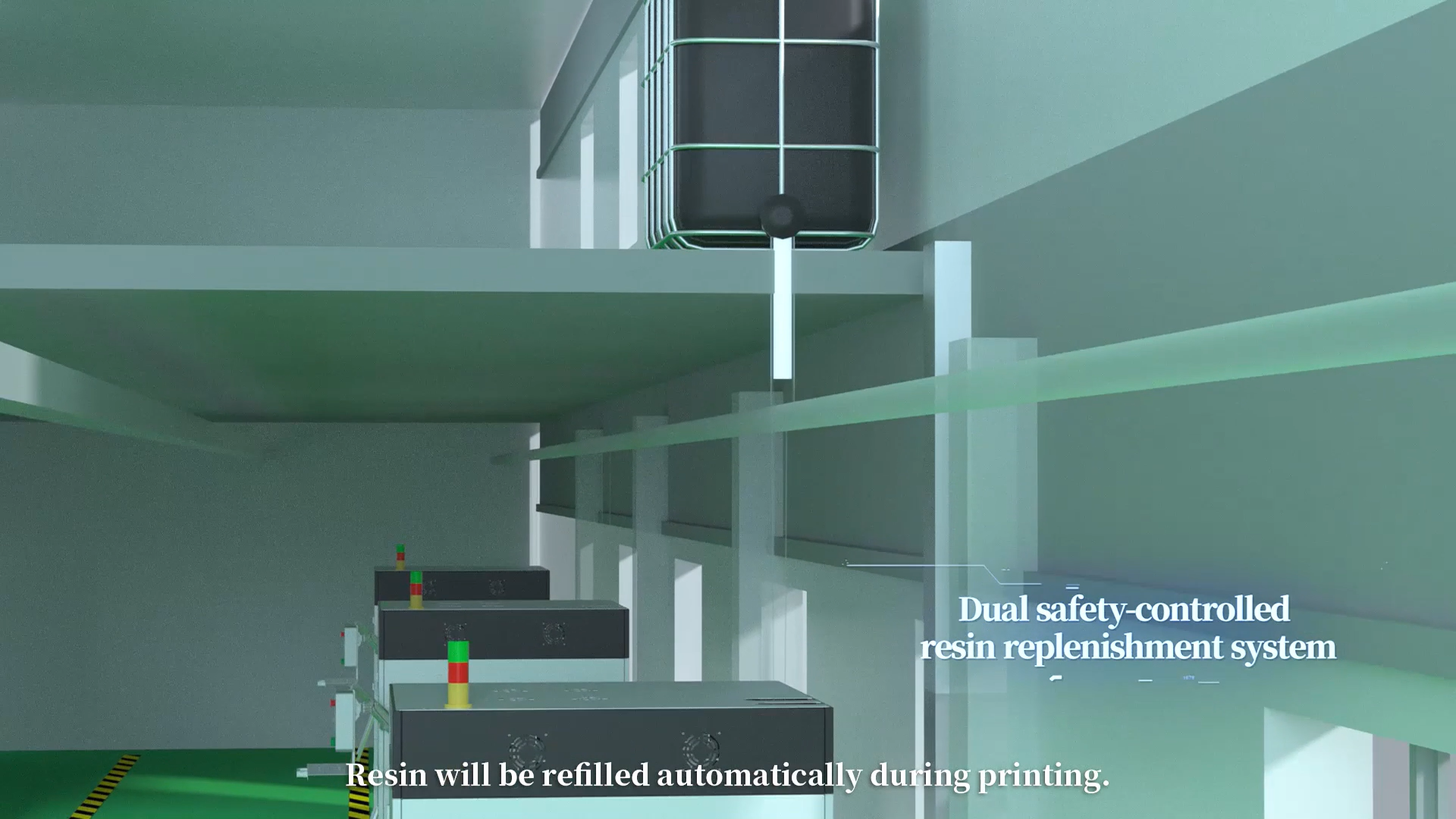

In order to achieve full-automatic printing without unmanned monitoring around the clock, the RF8050D printer automatically replenishes resin materials; after a single printing is completed, it automatically unloads the parts, then continues the next printing; with the MES system, the whole process of printing can be monitored situation. In case of a failure printing, it will automatically stop immediately, and a signal will prompt to check the reason.
Made it possible by:
Automatic replenishing system
Automatic unloading system
Print monitoring system
Save material
20%

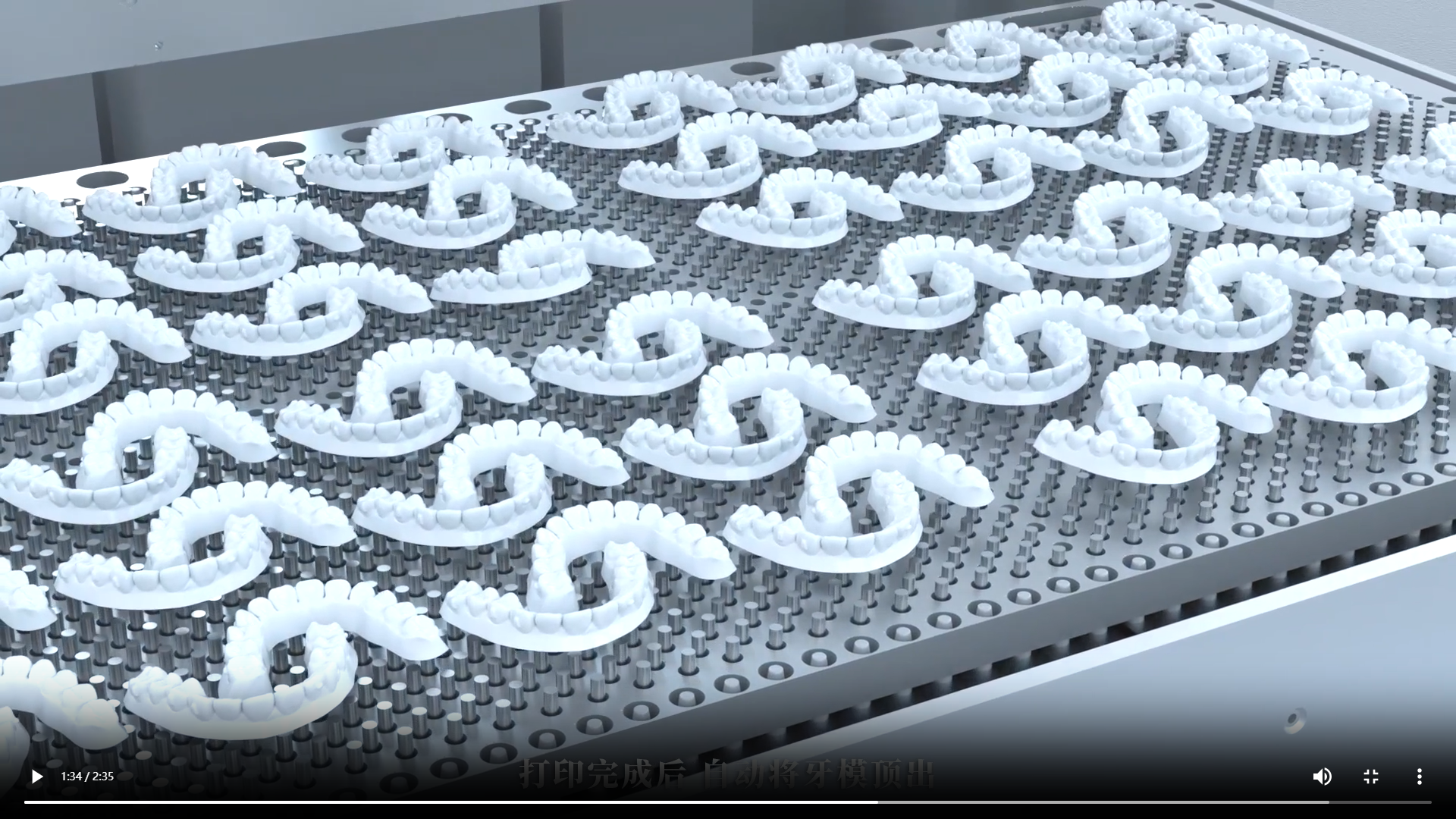

The original automatic unloading system makes it possible to print directly without adding support when printing dental models. Compared with traditional printing way with supports, it can save 20% resin consumption
Made it possible by:
Original automatic unloading system
Original platform design

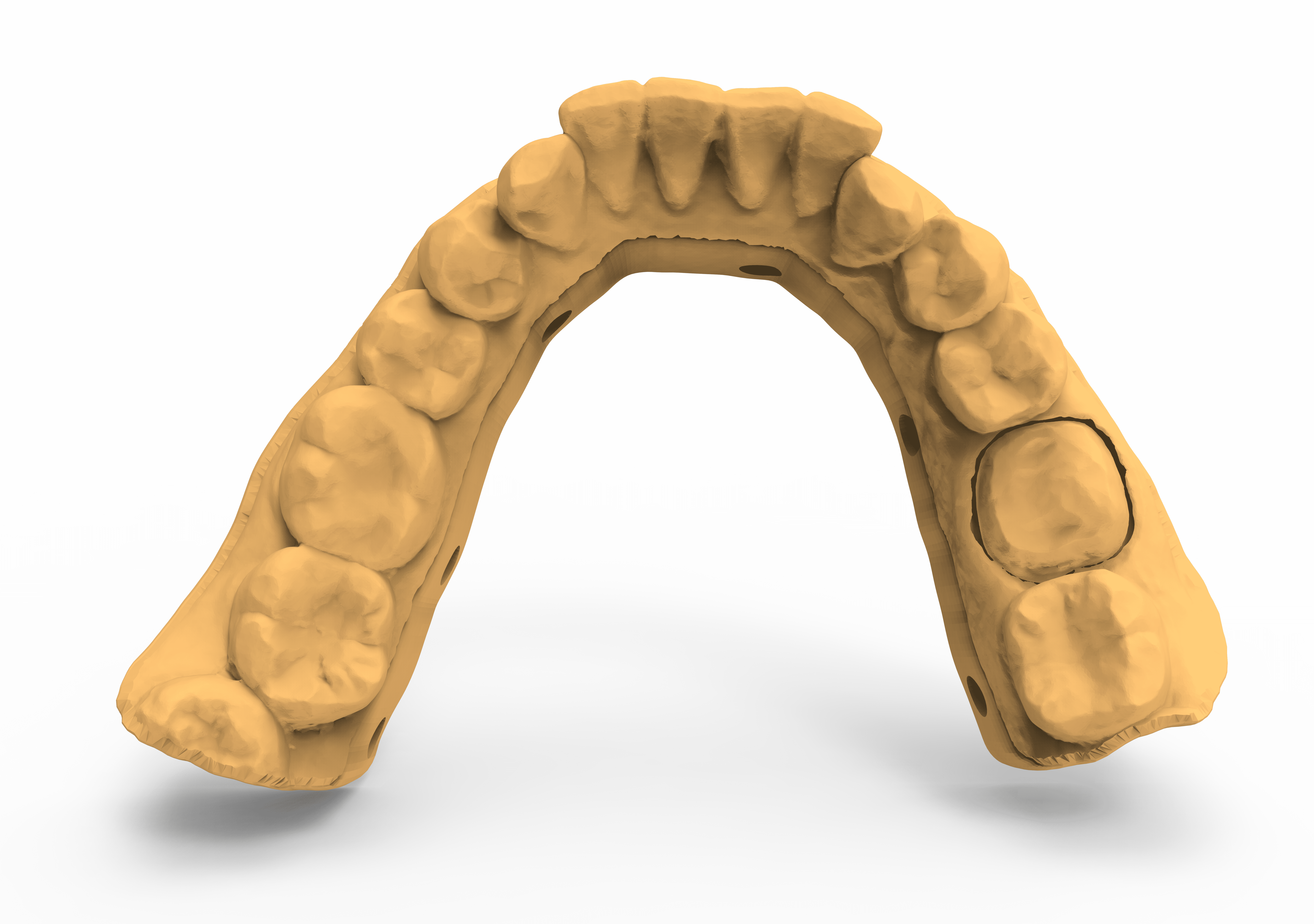

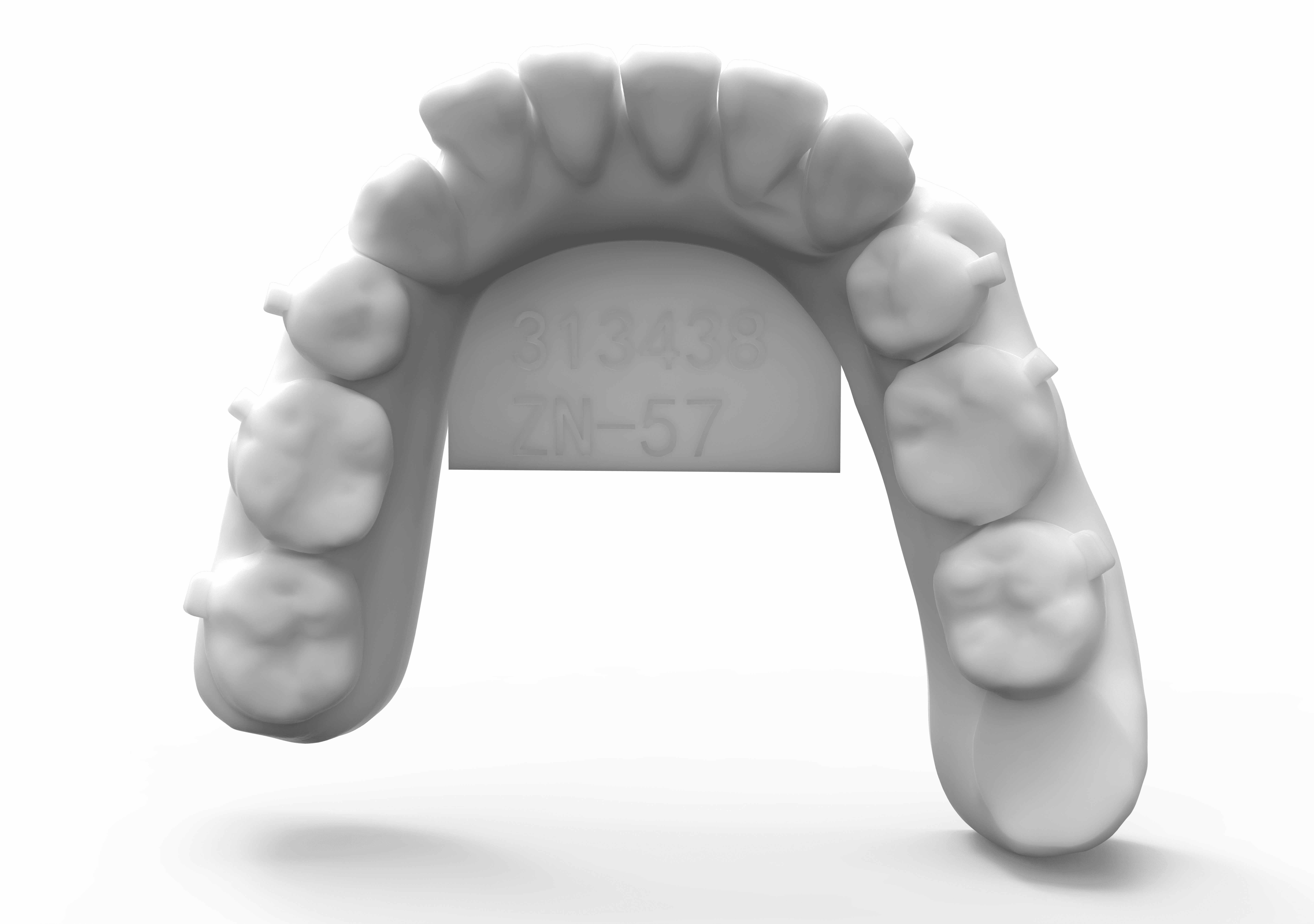

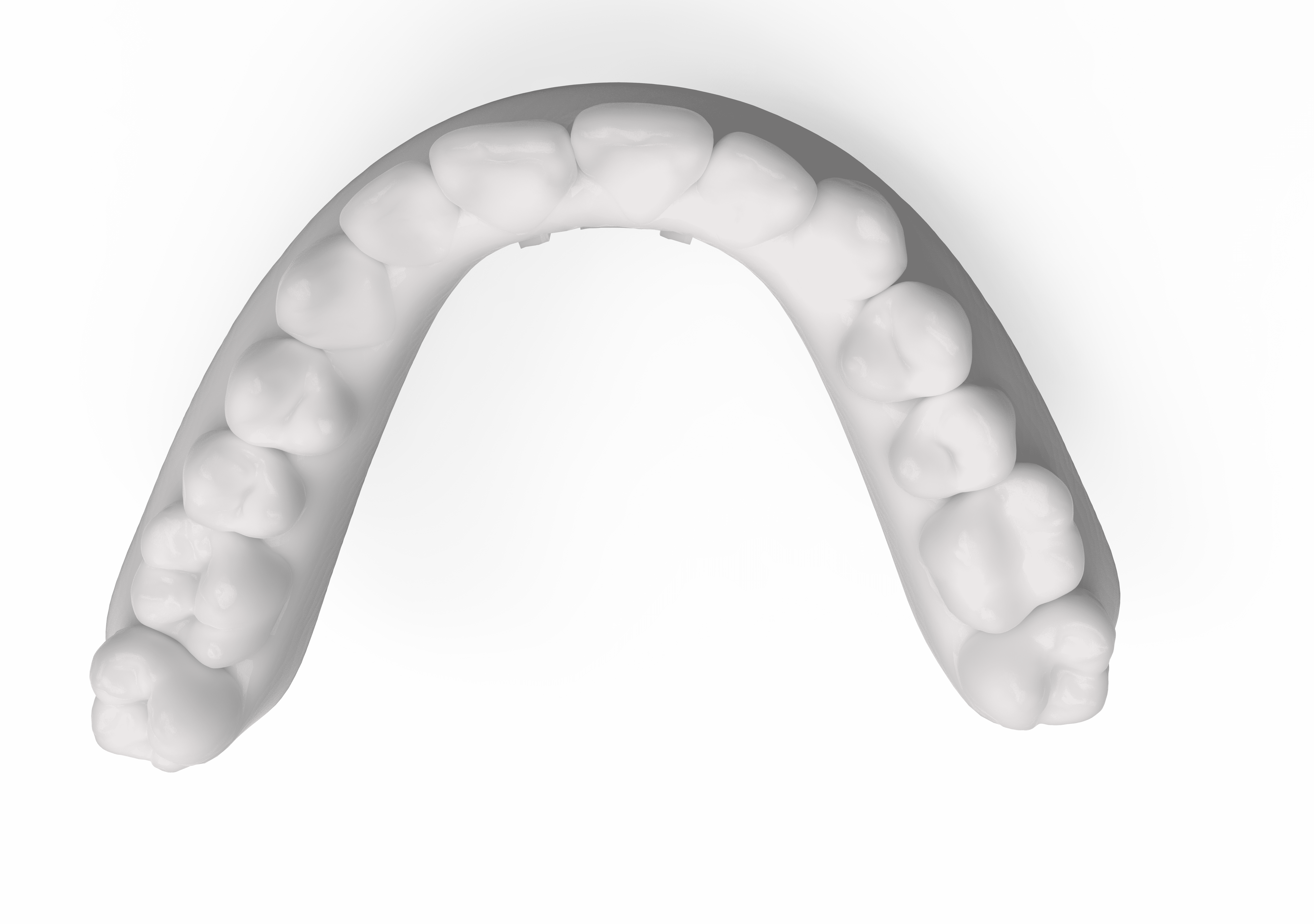

Sample
sample1
Sample Description
sample2
Sample Description
sample3
Sample Description
sample4
Sample Description
Parameters
XY resolution
7680*4320
Printing area
768*432*100mm
Pixel
100μm
Layer thickness
80-120μm
Exposure
DLP mask exposure
Light wave
405nm
Lifespan of light source
30000h
Light engine
adjustable
Printing speed
96 dental model/45 mins
Z axis preciseness (adjustable)
80-150um
Resin level preciseness
5μm
Distortion printed
＜0.5%
Uniformity
≥97%
Slicing software
Intelligent slicing
Operation system
Rayform V1.0
System requirement
windows10
Input format
STL BMP
Base
Granite
Full tank of resin
120kg
Heating system
Heating tank
Temperature control system
20-30℃
Humility requirement
＜55%
Rated power
3.0KW
Voltage
220V 50Hz
Net weight
800kg
Dimension
1270*1240*1930mm
Recommended matching resin
RF-MI-1101 RF-MI-1102 RF-MI-1103 RF-MI-2101 Washable resin, washing free resin, etc. Non-toxic, harmless, safe and environmentally friendly resin, which has passed the first-class medical record
XY resolution
3840*2160
Printing area
384*216*100/260mm
Pixel
100μm
Layer thickness
60-120μm
Exposure
DLP mask exposure
Light wave
405nm
Lifespan of light source
30000h
Light engine
adjustable
Printing speed
30mm/h
Z axis preciseness (adjustable)
80-150um
Resin level preciseness
5μm
Distortion printed
＜0.5%
Uniformity
≥97%
Slicing software
Intelligent slicing
Operation system
Rayform V1.0
System requirement
windows10
Input format
STL BMP
Base
Granite
Full tank of resin
40/80kg
Heating system
Heating tank
Temperature control system
20-30℃
Humility requirement
＜55%
Rated power
2.5KW
Voltage
220V 50Hz
Net weight
400KG
Dimension
1000*1020*1900mm
Recommended matching resin
RF-MI-1101 RF-MI-1102 RF-MI-1103 RF-MI-2101 Washable resin, washing free resin, etc. Non-toxic, harmless, safe and environmentally friendly resin, which has passed the first-class medical record
Case of application
Printing show of RF8800
