RF8800
RF8800 is a 3D printer specially designed for large and medium-sized orthodontic dental mold manufacturers, using multi-matrix DLP technology, sinking component mode, 7 days *24 hours automatic printing. Compared with traditi More details
RF4030
Fast and efficient DLP technology printer, suitable for dental, orthopedic and other fields More details
-
-
Printer

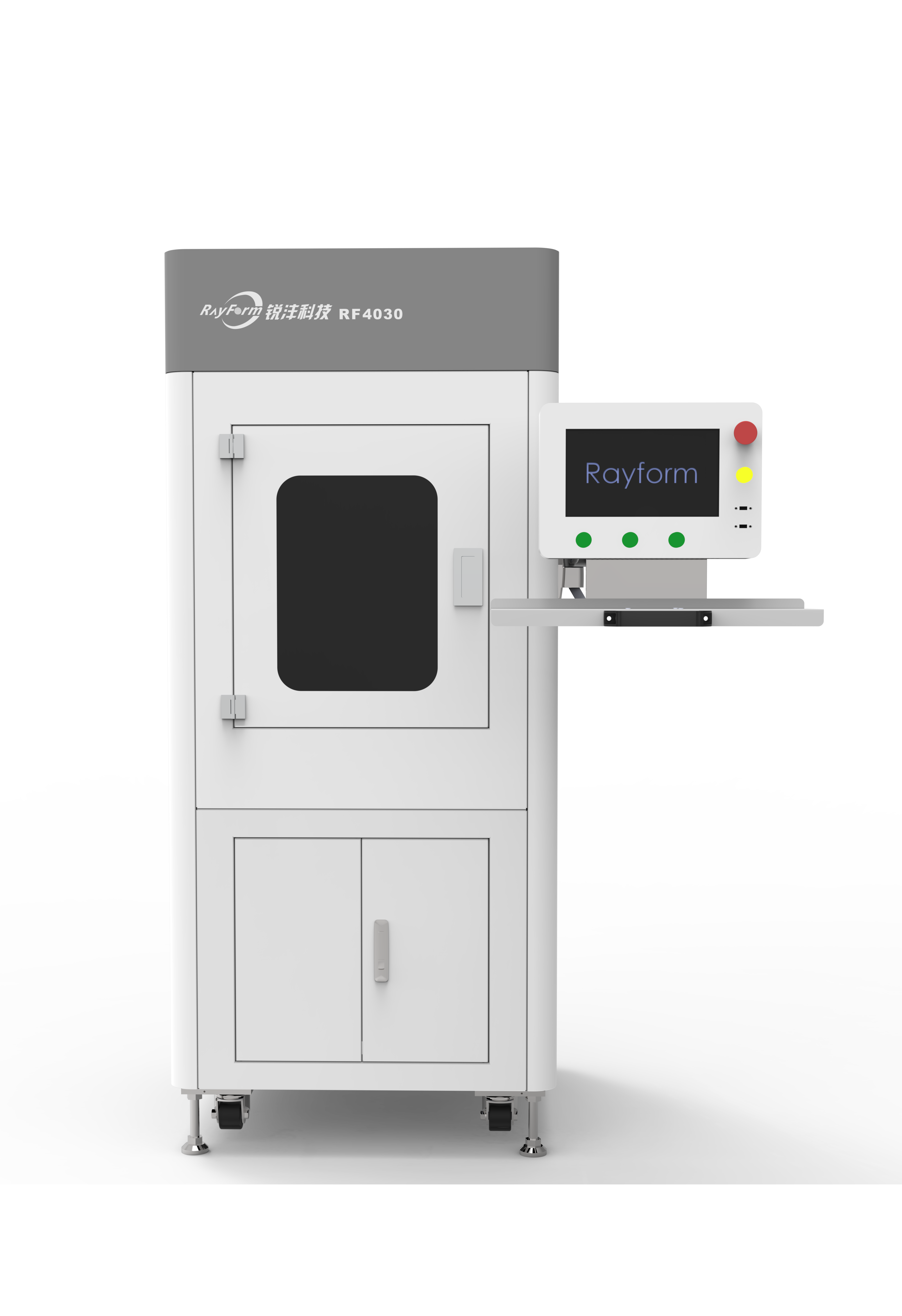

RF4030
Fast and efficient DLP technology printer, suitable for dental, orthopedic and other fields
The RF4030 printer is fast, efficient and reliable. It has high quality and fast printing of DLP technology; and adopts sinking platform, which avoids the problem of falling parts with traditional pull-up mode. Stable and reliable performance, ensured by our unique technical know-how and industrial-grade design standards.
Main Features
01
Distinct printing details and surface
02
Super high speed of printing
30mm/h
03
High successful rate of printing
more than 99.9%
04
Industrial-grade design standards
stable and reliable performance
Distinct printing details and surface
The printing surface and details are distinct and contrast, especially when printing ultra-white or transparent parts. This is the advantage of DLP technology over LCD technology.
Made it possible by:
DLP exposure
Super high speed of printing
30mm/h
DLP technology can output higher power than LCD technology，greatly shorten exposure time.
Made it possible by:
DLP mask exposure way
High successful rate of printing
more than 99.9%
Different from the pull-up structure on traditional DLP printers, RF4030 adopts sinking platform, which avoids the problem of dropped parts, greatly improves the printing success rate to over 99.9%!
Made it possible by:
Mode of sinking platform
Industrial-grade design standards
stable and reliable performance
Made it possible by:

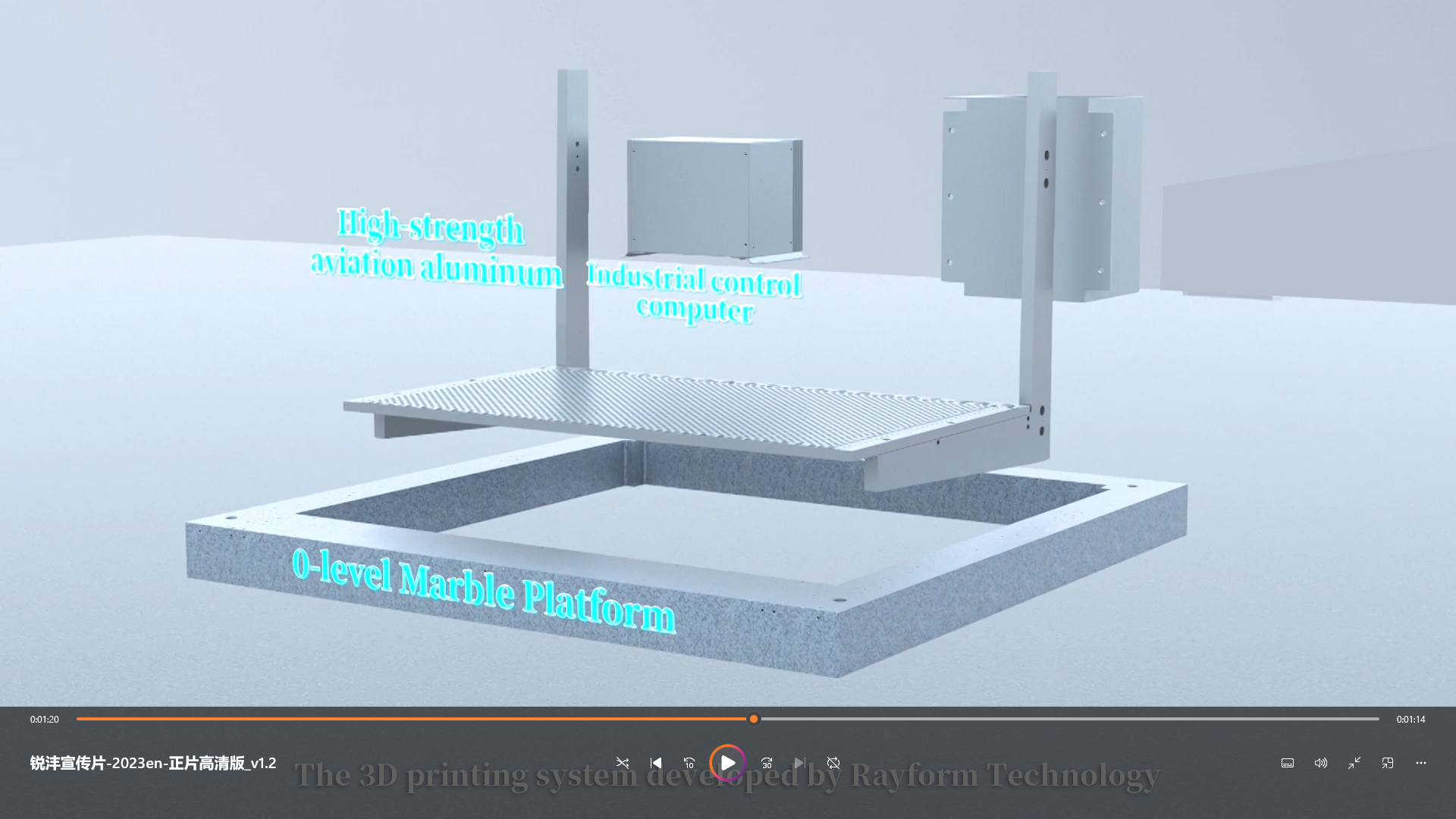

Granite base, the equipment runs more steady and accurately
Many of our company's unique know-how have been incorporated into the design to strengthen the printing process.

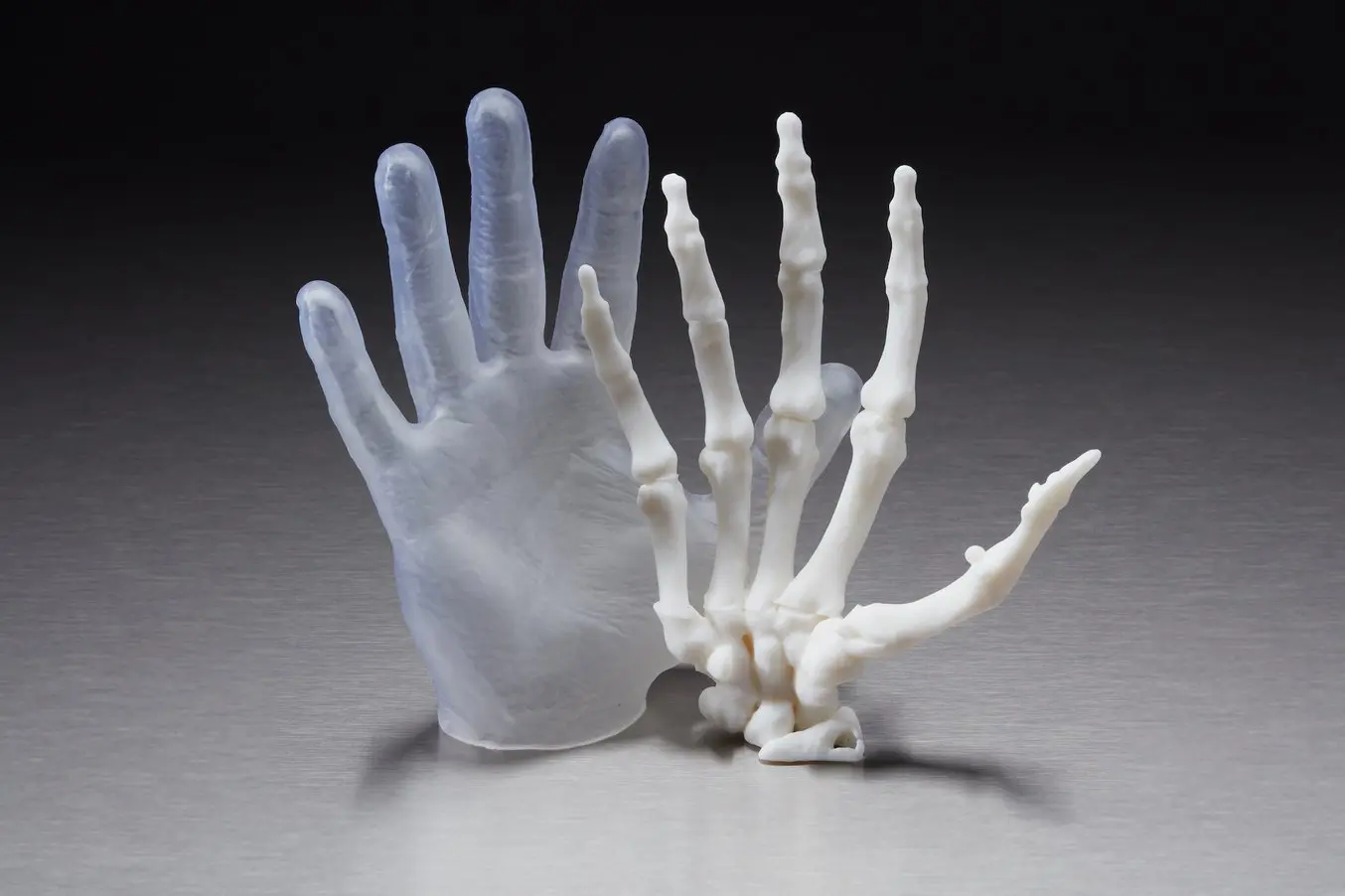

Sample
sample1
Sample Description
sample2
Sample Description
sample3
Sample Description
sample4
Sample Description
Parameters
XY resolution
7680*4320
Printing area
768*432*100mm
Pixel
100μm
Layer thickness
80-120μm
Exposure
DLP mask exposure
Light wave
405nm
Lifespan of light source
30000h
Light engine
adjustable
Printing speed
96 dental model/45 mins
Z axis preciseness (adjustable)
80-150um
Resin level preciseness
5μm
Distortion printed
＜0.5%
Uniformity
≥97%
Slicing software
Intelligent slicing
Operation system
Rayform V1.0
System requirement
windows10
Input format
STL BMP
Base
Granite
Full tank of resin
120kg
Heating system
Heating tank
Temperature control system
20-30℃
Humility requirement
＜55%
Rated power
3.0KW
Voltage
220V 50Hz
Net weight
800kg
Dimension
1270*1240*1930mm
Recommended matching resin
RF-MI-1101 RF-MI-1102 RF-MI-1103 RF-MI-2101 Washable resin, washing free resin, etc. Non-toxic, harmless, safe and environmentally friendly resin, which has passed the first-class medical record
XY resolution
3840*2160
Printing area
384*216*100/260mm
Pixel
100μm
Layer thickness
60-120μm
Exposure
DLP mask exposure
Light wave
405nm
Lifespan of light source
30000h
Light engine
adjustable
Printing speed
30mm/h
Z axis preciseness (adjustable)
80-150um
Resin level preciseness
5μm
Distortion printed
＜0.5%
Uniformity
≥97%
Slicing software
Intelligent slicing
Operation system
Rayform V1.0
System requirement
windows10
Input format
STL BMP
Base
Granite
Full tank of resin
40/80kg
Heating system
Heating tank
Temperature control system
20-30℃
Humility requirement
＜55%
Rated power
2.5KW
Voltage
220V 50Hz
Net weight
400KG
Dimension
1000*1020*1900mm
Recommended matching resin
RF-MI-1101 RF-MI-1102 RF-MI-1103 RF-MI-2101 Washable resin, washing free resin, etc. Non-toxic, harmless, safe and environmentally friendly resin, which has passed the first-class medical record
Case of application
Printing show of RF8800
