With the advancement of 3D printing technology, the use of resin 3D printing to produce dental models has the advantages of being fast, accurate and customizable. The most commonly used resin 3D printing methods include digital light processing (DLP) and liquid crystal display (LCD)-based printing, each employing a unique curing mechanism to solidify photo-polymer resins. But what are the differences and characteristics of these two technologies? And how do they impact your printing projects?
In this article, we’ll delve into the specifics of DLP and LCD, comparing their advantages, features, and suitability for different needs. Ultimately, you’ll have a clear understanding of which printer is best suited for your project.
DLP is a technology that digitally processes image signals and then projects them into light, thereby completing the display of visual digital information. It uses a digital projector to project a complete cross-sectional image of each layer of the model onto the resin surface simultaneously. The illuminated areas of the image solidify, while the dark areas remain liquid. By continuously scanning with light to record the pattern of each layer, the platform then pushes the liquid to cover the model, and this process is repeated until it is completed.

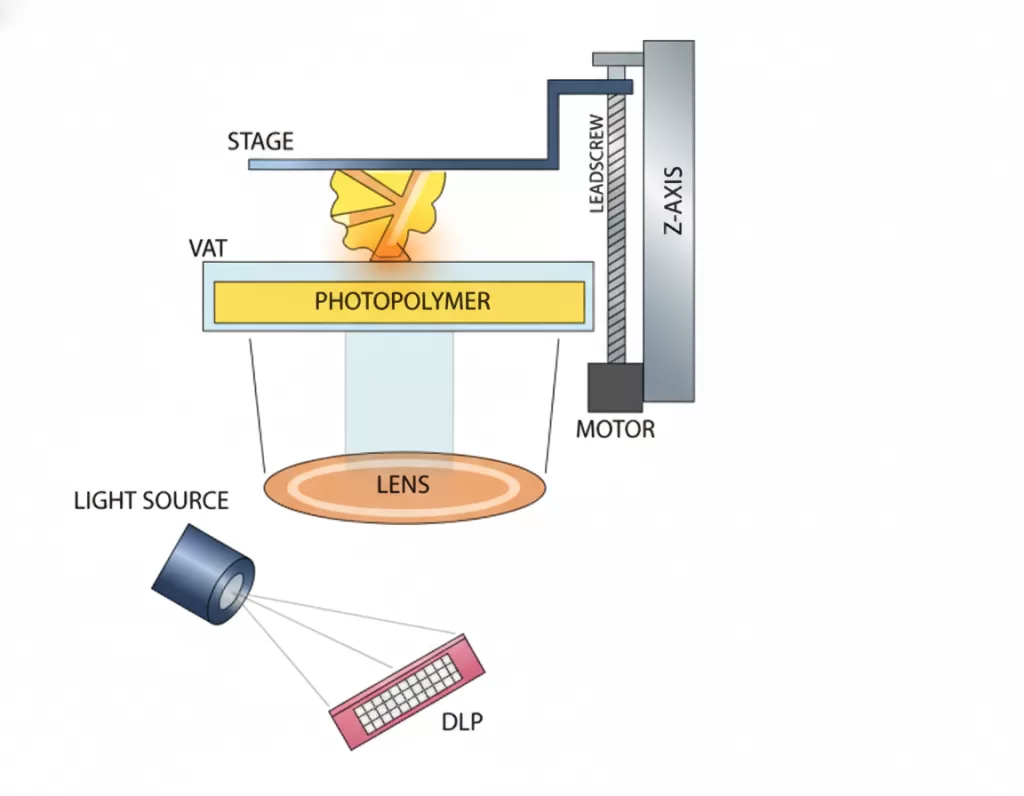

Schematic diagram of DLP 3D printing process
LCD use ultraviolet light to cure resin. It uses ultraviolet light to illuminate the liquid crystal screen, and the screen pixels control the exposure area, which cures the entire image layer at once. After each layer’s curing time is complete, a platform lifts the cured portion, allowing the resin to refill and then descend again. This process gradually solidifies and rises, creating a beautiful 3D model. Therefore, the print quality of an LCD printer depends on its LCD density, the more pixels, the better the print quality.

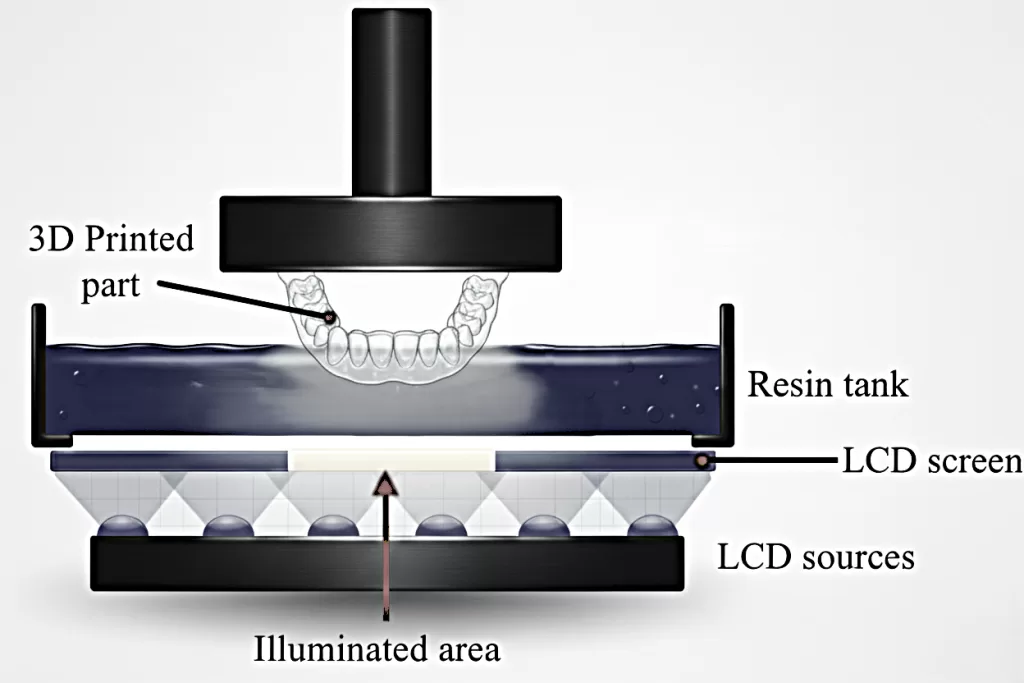

LCD 3D Printing Principle Diagram
Therefore, different technical methods make printers applicable in different fields. You need to understand the characteristics of each printer to choose the one you need.
DLP products boast ultra-high precision and smooth surfaces, with detailed textures rendered clearly and virtually sanding-free. Furthermore, DLP allows for simultaneous curing of entire layers of a model, with printing speed independent of the model’s complexity in the XY plane. This results in high overall molding efficiency, offering significant advantages in mass production. Furthermore, DLP resin 3D printers are compatible with a variety of photosensitive resins, such as high-temperature-resistant and high-toughness resins, meeting performance requirements in diverse scenarios and providing a wider range of manufacturing options. In addition, its stable and long-lasting light source makes them suitable for long-term, high-load production, significantly reducing costs.
What does LCD mean for resin 3D printing?
LCD light-curing 3D printing technology also offers excellent cost-effectiveness and precision, with fine, clear layer textures and detail comparable to DLP devices. It also utilizes the full-surface forming principle to achieve full-layer curing, offering significant speed advantages in model printing, easily meeting the needs of rapid small-volume production.
Unlike DLP, the tree-like supports produced by LCD printing are easily removable, requiring only simple polishing for post-processing, significantly saving labor and time. This device has a simple structure and is easy to maintain, with an overall cost of only one-tenth that of a DLP device. Combined with a high-resolution 4K to 8K LCD screen and a long-life UV LED light source, it not only ensures print detail and stability, but also provides businesses with an efficient, economical, and easy-to-use light-curing printing solution.
Whether DLP is better than LCD depends largely on your specific needs and the type of project you are working on. Both DLP and LCD printers boast incredible resolution and can produce high-quality work quickly, but DLP printers take it one step further in terms of precision and efficiency.
If your project demands high precision while also requiring efficient and large-scale production, the DLP printer is undoubtedly your best choice. The DLP print speed is unaffected by the complexity of the XY plane model, which means that it maintains consistent productivity even when processing complex dental structures. It’s also compatible with a wide range of resin materials, meeting your diverse needs. On the other hand, if you’re less demanding on precision and volume production and prefer a more affordable option, then the LCD printer remains an ideal choice.
In short, while the DLP offers superior precision and efficiency, the LCD still delivers impressive quality, which may be sufficient for most users.
If you’re looking for the pinnacle of resin 3D printing technology, the RF-8800 is a top-of-the-line resin 3D printer. This industrial-grade automated 3D printer boasts a fully automated system, featuring capabilities for automatic removal, sorting, refilling, task assignment and printing. It adopts multi-matrix DLP technology, sinking platform mode, and its mechanical design innovative reduces the peeling force, safeguarding dental models, enhancing stability, and ensuring clean removal. Moreover, its superior design ensures high reliability, stability, and straightforward maintenance, the highest efficiency on the market.

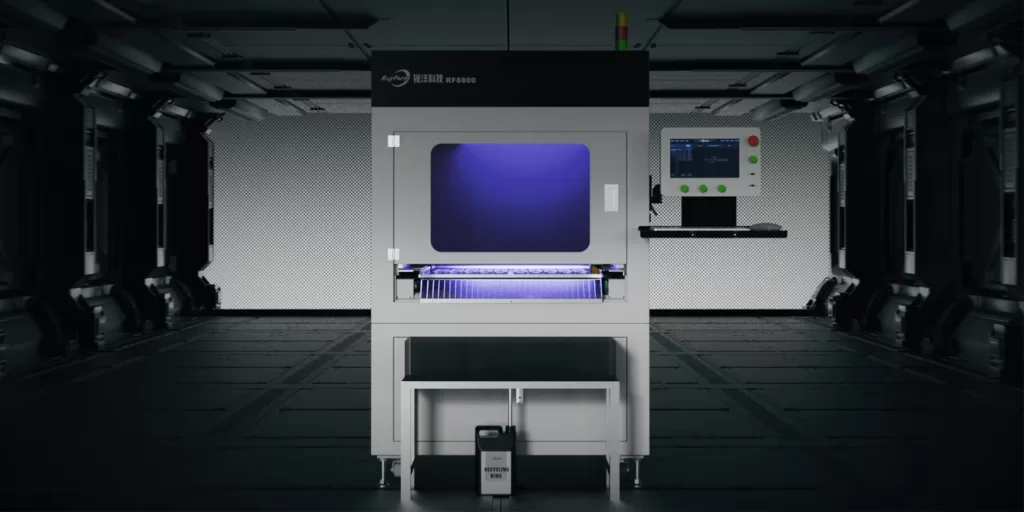

RF-8800 3D Printer Front View
Key features of the RF-8800 include:
Advanced HADP™™ technology, the largest DLP build volume 768*432mm
4 x 4K DLP optical engines, each one with more than 30,000 hours of lifetime
High precision laser displacement sensor combined with a unique liquid level adjustment algorithm, which achieves ultra high printing speed up to 30mm/h.
Innovative separation technology and convenient automatic resin refilled system, together with intelligent control system for multiple printers achieve 7×24 hours unmanned-automated production.
The RF-3024D is undoubtedly a leader in dental resin 3D printers. The RayForm Dental 4K LCD 3D Printer has high-precision and fast printing, suitable for printing dental models.
Key features of the RF-3024D include:
Sturdy and durable, build volume 143x90x80 mm
Adopts COB centralized light source design, the uniformity can get to 92%
Upgraded UI interface, easy to operate, brings users a better operating experience
Unique structure of release film, reduces the peeling force, which achieves ultra high printing speed up to 80mm/h
When it comes to dental resin 3D printers, different technologies offer varying suitability. While both DLP and LCD resin 3D printers boast impressive precision and speed, DLP printers offer advantages for mass-producing complex models and can accommodate a wider range of products.
For most users, LCD printers provide sufficient detail for printing small batches of dental models. However, if your studio demands higher precision and detail, and prioritizes efficiency and model diversity, then DLP printers are undoubtedly the best choice.
The choice between a DLP and LCD printer ultimately depends on your specific needs and budget. However, one thing is certain: both printers offer cutting-edge technology to help you bring your perfect designs to life.

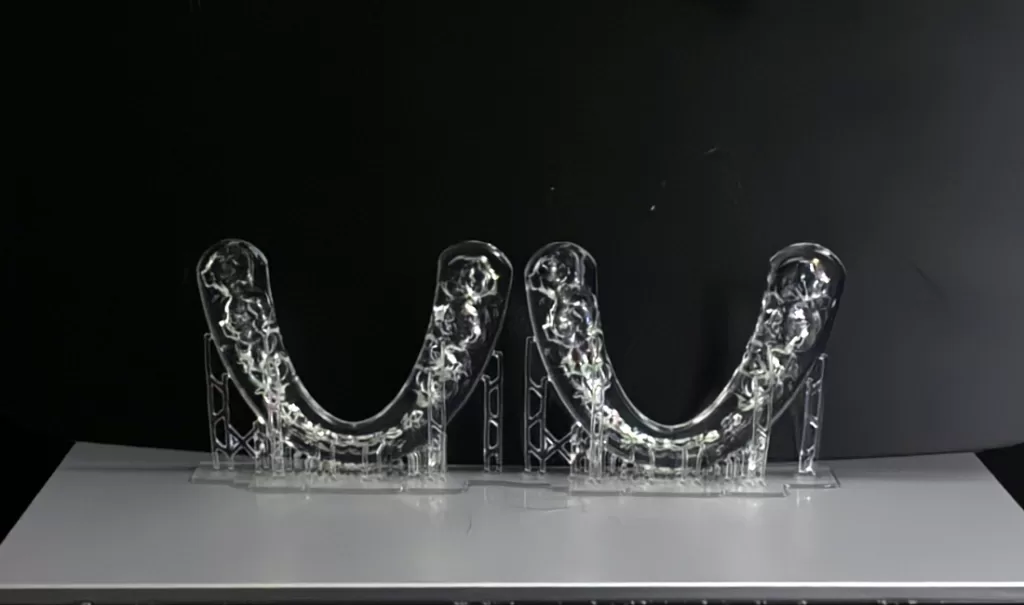

3D Printing Resin Resin formula achieves the adaptation of orthopedic force by balancing flexibility and mechanical stability, perfectly adhering to the shape of the oral cavity, resisting erosion and temperature changes during long-term...
