Fixed Hybrid Denture Resin
Fixed hybrid denture resin described by the TDS

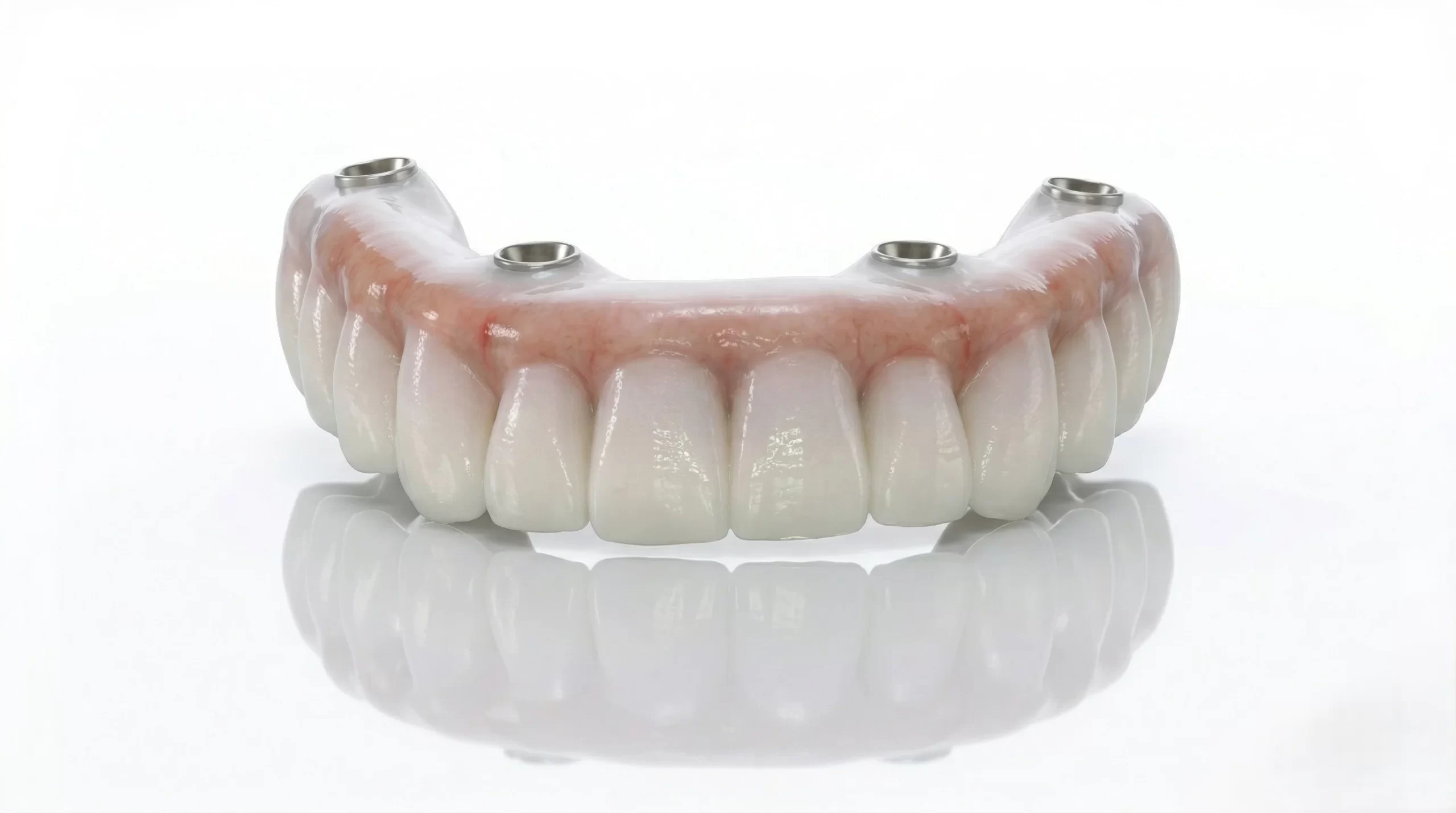

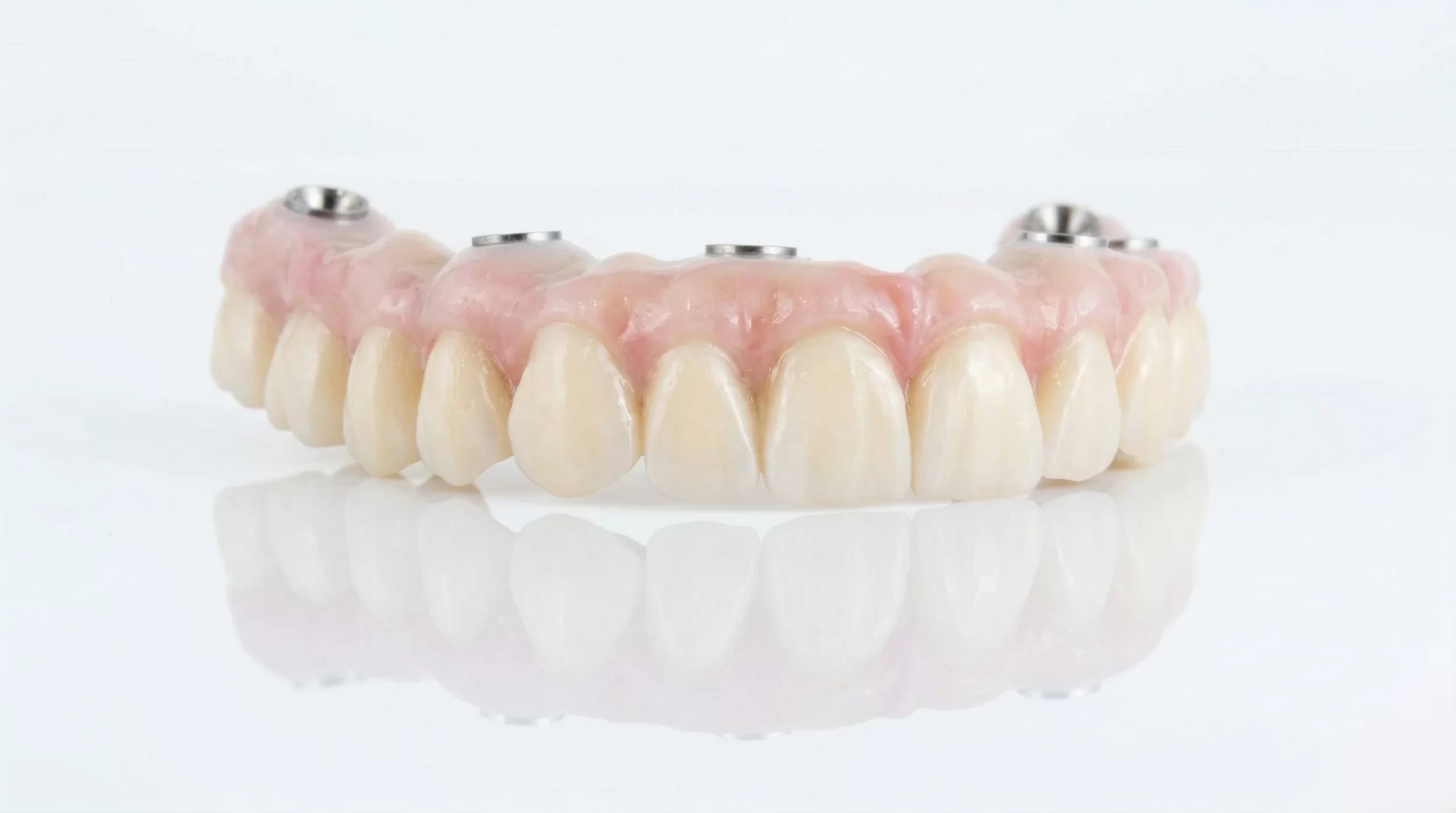

The RF-OX-17 TDS describes a high-strength, high-hardness, high-precision, and high-temperature-resistant resin for fixed hybrid denture and full-mouth restoration workflows. Use the material data and printer settings as laboratory validation starting points.
Technical Data
| Properties | Unit | Test method | Result |
|---|---|---|---|
| Density | g/cm³ | ASTM D792 | 1.60–1.70 |
| Viscosity | mPa·s | ASTM D445 | 4500 |
| Hardness | Shore D | ASTM D2240 | 94D |
| Tensile Strength | MPa | ASTM D638 | 130 |
| Elongation at Break | % | ASTM D638 | 5 |
| Flexural Strength | MPa | ASTM D790 | 140–150 |
| Flexural Modulus | MPa | ASTM D790 | 3200 |
TDS Printing Parameters
LCD/DLP starting parameters from the current TDS. Calibrate for the actual printer, resin batch, temperature, geometry, supports, and post-processing.
| Printer | Exposure (s) | Base Exp. (s) | Base Layers | Lift Height (mm) | Lift Speed (mm/min) | Retract Speed (mm/min) |
|---|---|---|---|---|---|---|
| Phrozen Sonic Mini 8K S | 10 | 50 | 3 | 4+4 | 60+120 | 180+60 |
| Creality HALOT-MAGE Pro | 3.6 | 20 | 3 | 8+2 | 60+180 | 180+60 |
| Elegoo Saturn 4 Ultra | 6.4 | 40 | 3 | Device default standard parameters | ||
| Anycubic Photon Mono 4 Ultra | 8.4 | 50 | 3 | 4+4 | 90+120 | 240+90 |
| Elegoo Saturn 3 Ultra | 8 | 50 | 3 | 4+4 | 60+180 | 180+90 |
| Anycubic Photon Mono M7 Pro | 5.8 | 35 | 3 | 4+4 | 60+120 | 180+60 |
TDS Post-Processing & Storage
- 1
Wash — Clean with isopropyl alcohol in an ultrasonic cleaner. Handle gently; avoid high-frequency or forceful brushing that could damage the surface.
- 2
Dry — Blow the printed part completely dry with a hair dryer or similar tool.
- 3
Remove supports — Remove supports before post-curing; removal after curing can damage support-contact areas.
- 4
Conditional post-cure — When additional toughness is required, UV cure for 5 minutes.
Storage
Store in a cool, dry place below 25°C, away from direct sunlight and visible light.
Safety and use status
The current TDS states that the resin is not approved for food, drink, or medical application on the human body. Review the SDS and verify current intended use and regulatory status before any clinical use.
Printers Listed in the TDS
Processing technology: LCD/DLP. These are the only representative models named in the current TDS.
Use these profiles as calibration starting points, not as universal compatibility approval.
Workflow Described in the TDS
The TDS describes RF-OX-17 for fixed hybrid denture and full-mouth restoration workflows. Because the same TDS states that the resin is not approved for medical application on the human body, verify the current intended use and regulatory status before any clinical use.
RF-OX-17 Technical FAQ
- QWhat does the TDS describe RF-OX-17 for?
Fixed hybrid denture and full-mouth restoration workflows. This description is not a regulatory approval. - QWhat are the key TDS values?
Shore D 94, tensile strength 130 MPa, elongation 5%, flexural strength 140–150 MPa, and flexural modulus 3200 MPa. - QWhich printing technologies are listed?
LCD and DLP, with starting profiles for the six representative devices above. - QHow should parts be cleaned?
Use isopropyl alcohol with ultrasonic cleaning, then dry and remove supports before post-curing. - QDoes this page claim approved clinical use?
No. Verify current intended use, regulatory status, and the valid local protocol before any clinical use. - QWhat distinguishes RF-OX-17 from the 55% crown resin when selecting material?
RF-OX-17 has TDS tensile strength of 130 MPa and flexural modulus of 3200 MPa; RF-YG-08 55% lists 140 MPa and 2500 MPa. The documents describe different workflows and formulations. Compare the matching TDS and validate each process; these values do not establish interchangeability. - QHow do retail and B2B resin purchasing differ?
For retail resin purchases, open the matching store product. For bulk supply or distributor pricing, send a B2B resin inquiry. Include the resin, required quantity, printer model and target market so the order and current material documentation can be matched to your workflow.
