Gingiva Mask Resin
Key Features
RF-YY-10 is a dental-grade 3D printing resin for flexible simulated gingiva. Combined with dental model materials, it enables functional 3D reconstruction of gingival model fragments. The material offers high elasticity, tear resistance and molding stability, does not shrink or age, retains flexibility over time, and has no irritating odor.
Basic Performance
| Properties | Unit | Standard | Result |
|---|---|---|---|
| Density | g/cm³ | ASTM D792 | 1.10–1.16 |
| Viscosity | mPa·s | ASTM D445 | 2000–3000 |
| Hardness | Shore A | ASTM D2240 | 70A |
| Tensile Strength | MPa | ASTM D638 | 31.4 |
| Elongation at Break | % | ASTM D638 | 172 |
Printing Parameters
The current TDS lists the following representative machine parameters as starting references.
| Printer | Exposure (s) | Base Exp. (s) | Base Layers | Lift Height (mm) | Lift Speed (mm/min) | Retract Speed (mm/min) |
|---|---|---|---|---|---|---|
| Phrozen Sonic Mini 8K S | 6 | 10 | 3 | 10 | 120 | 120 |
| Elegoo Saturn 4 Ultra | 6 | 20 | 3 | Default standard parameters of the device | ||
| Elegoo Saturn 3 Ultra | 7 | 25 | 3 | 4+4 | 60+180 | 180+60 |
| Creality Halot-MAGE Pro | 6 | 20 | 3 | 8 | 120+180 | 180+120 |
| Anycubic Mono 4 Ultra | 4.7 | 35 | 3 | 4+4 | 90+120 | 180+120 |
Post-Processing & Storage
-
1
Wash – Clean the model with absolute ethanol or isopropyl alcohol using a low-frequency ultrasonic cleaner. Avoid high-frequency or high-power ultrasonic cleaning as it may damage the model surface.
-
2
Dry – Thoroughly blow the model dry with a hair dryer or similar tool.
-
3
Remove Supports – Remove supports before post-curing. Removing supports after post-cure may damage the contact surface at support points.
-
4
Optional Post-Cure – For occasions where certain toughness is required, UV cure for 5 minutes. Store printed parts in a cool, dry place.
Storage
Store below 25°C in a cool place away from direct sunlight. Keep away from visible light to prevent resin polymerization and gelation.
Safety
Eyes: Flush with clean water for at least 20 minutes and seek medical attention immediately. Skin: Remove contaminated clothing and wash thoroughly with soap and water. Not approved for food, drink, or medical application on the human body. See MSDS for details.
Machine Compatibility
RF-YY-10 is processed with LCD and DLP technology. The current TDS provides reference settings for the representative printers below.
Use the TDS settings as starting references and validate them for your equipment and workflow.
Dental Model Applications

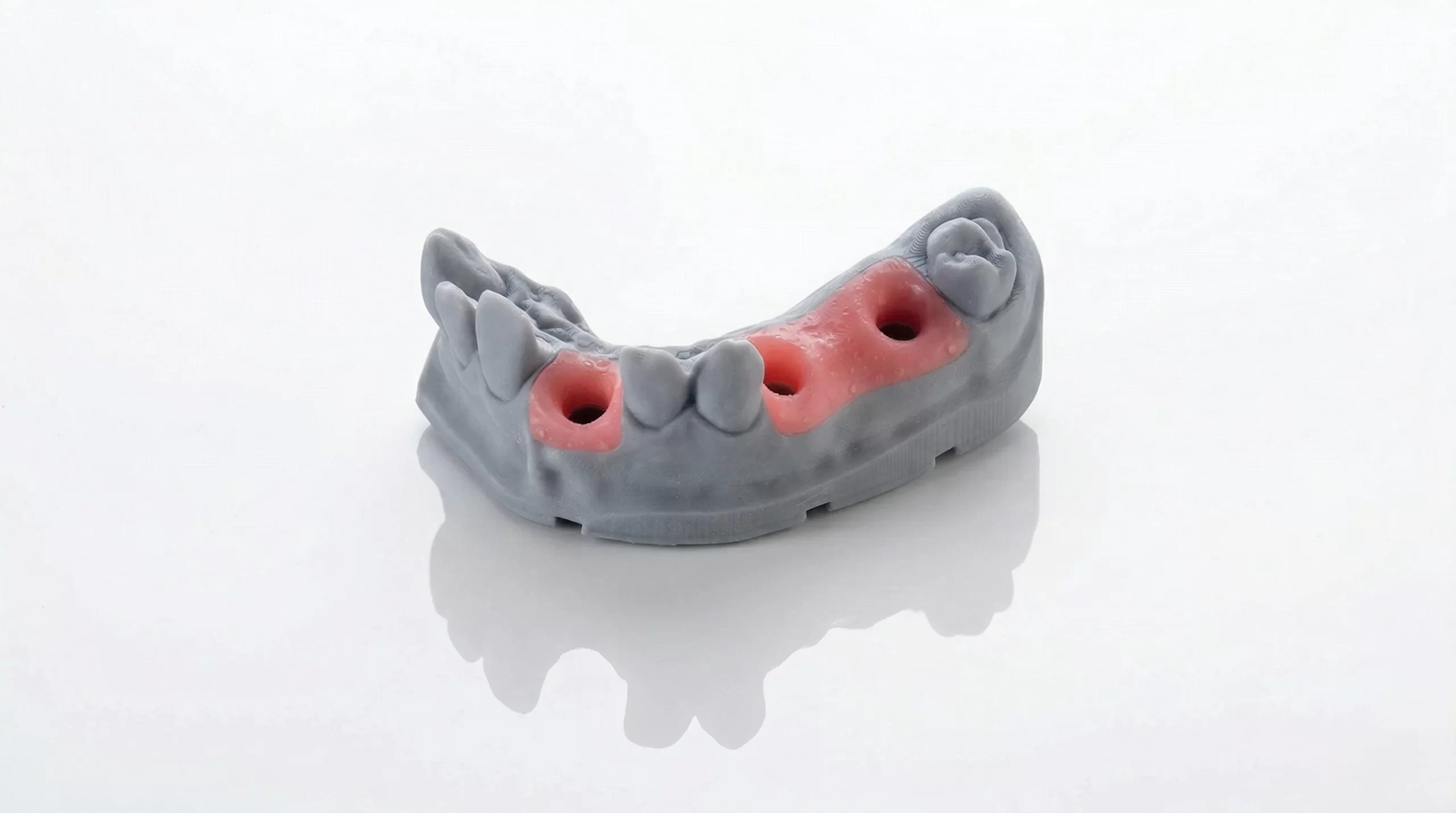

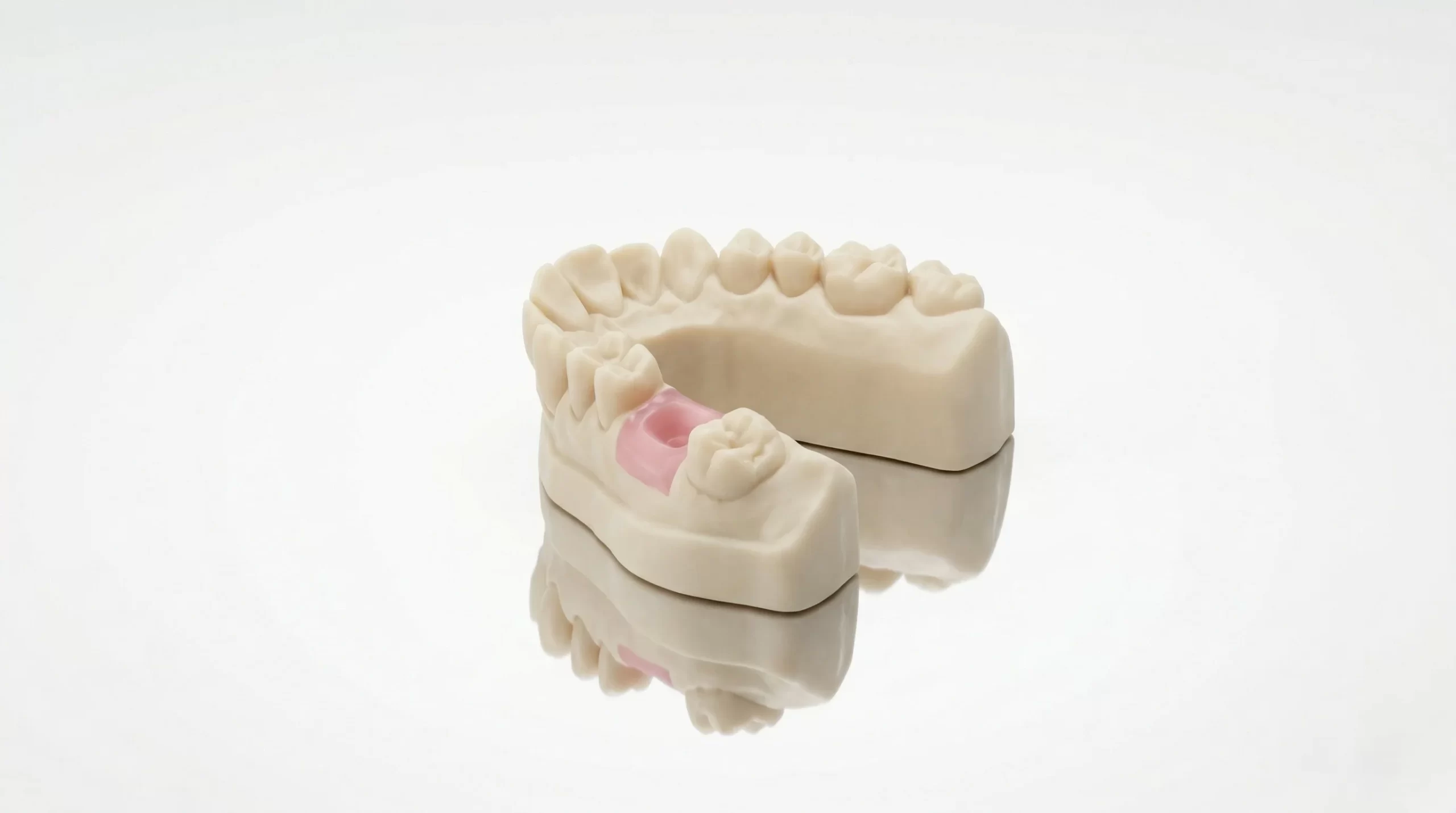

Designed for flexible simulated gingiva used with dental model materials to support functional 3D reconstruction of gingival model fragments.
Frequently Asked Questions
- QWhat is RF-YY-10 used for?
It is a dental-grade resin for flexible simulated gingiva used with dental model materials to reconstruct gingival model fragments. - QWhat are its measured mechanical properties?
The TDS reports 70 Shore A hardness, 31.4 MPa tensile strength and 172% elongation at break. - QWhich printing technologies and machines are listed?
The TDS specifies LCD and DLP processing and provides parameters for Phrozen Sonic Mini 8K S, Elegoo Saturn 4 Ultra and Saturn 3 Ultra, Creality Halot-MAGE Pro, and Anycubic Mono 4 Ultra. - QHow should printed parts be cleaned and post-cured?
Clean with absolute ethanol or isopropyl alcohol using low-frequency ultrasonic cleaning, blow dry thoroughly, remove supports before post-curing, and UV cure for 5 minutes when toughness is required. - QIs RF-YY-10 approved for use on the human body?
No. The TDS states that it is not approved for medical application on the human body; consult the MSDS for safety details.
