Temporary Crown & Bridge Resin
Temporary crown-and-bridge resin described by the TDS

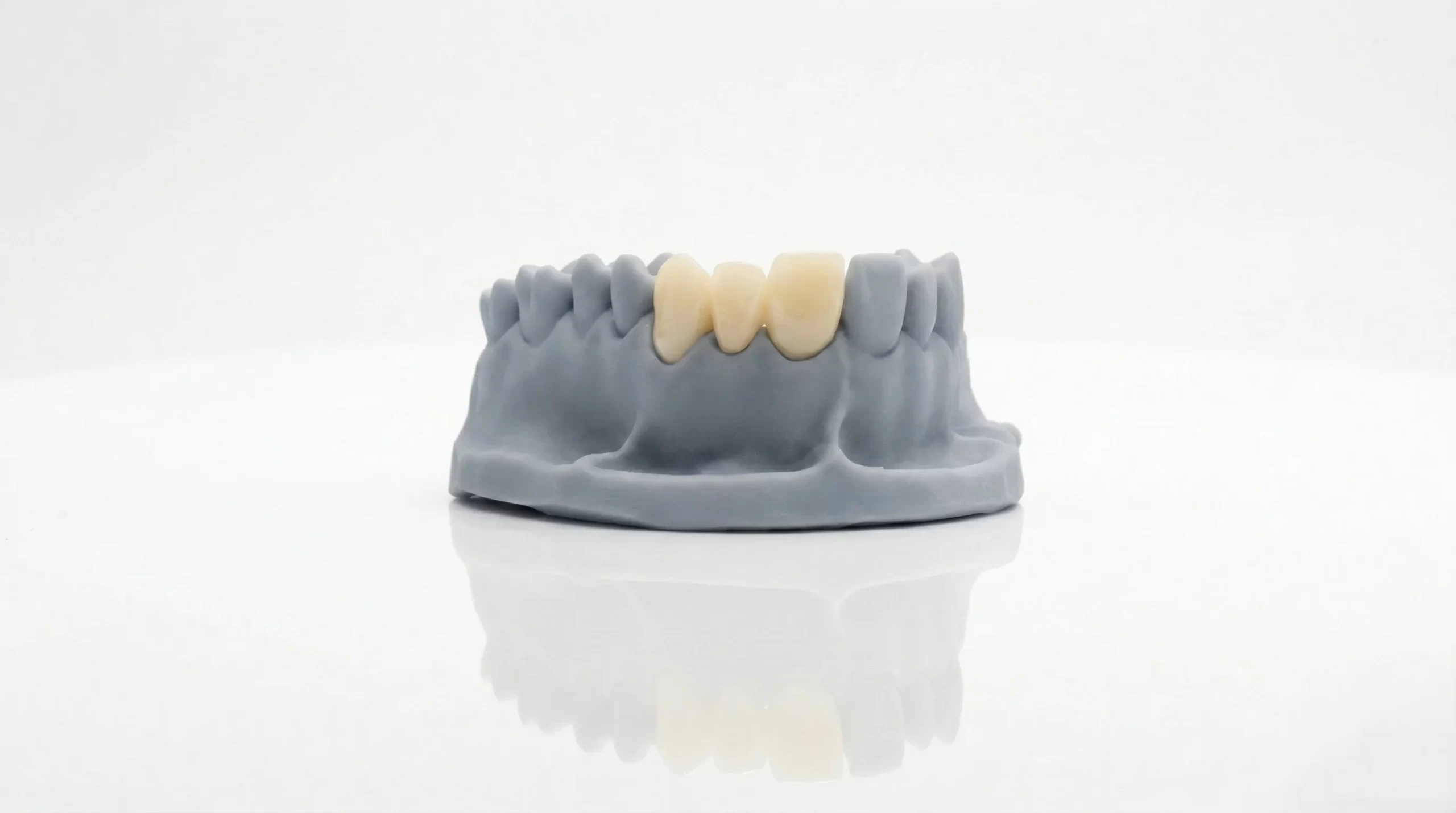

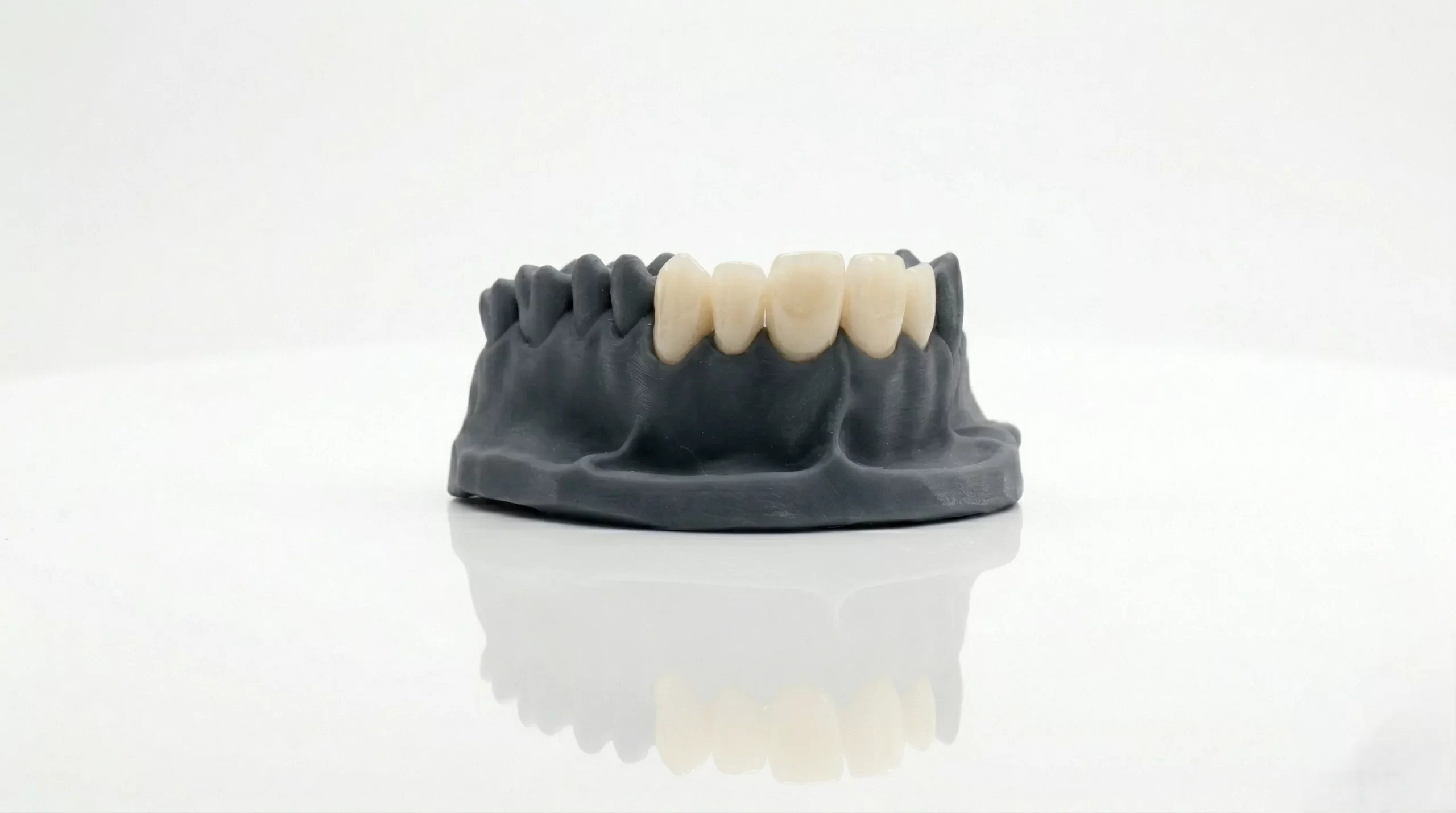

The RF-GQ-06 TDS describes a resin for temporary teeth, bridges, inlays, veneers, and temporary crowns during implant or denture-restoration workflows. It lists pressure and impact resistance, edge adaptability, high precision, polishability, and wear resistance. Validate all settings and use conditions in the laboratory.
Technical Data
| Properties | Unit | Test method | Result |
|---|---|---|---|
| Density | g/cm³ | ASTM D792 | 1.05–1.15 |
| Viscosity | mPa·s | ASTM D445 | 1000–1400 |
| Hardness | Shore D | ASTM D2240 | 90D |
| Tensile Strength | MPa | ASTM D638 | 90 |
| Elongation at Break | % | ASTM D638 | 9 |
| Flexural Strength | MPa | ASTM D790 | 110 |
| Flexural Modulus | MPa | ASTM D790 | 2100 |
TDS Printing Parameters
LCD/DLP starting parameters from the current TDS. Calibrate for the actual printer, resin batch, temperature, geometry, supports, and post-processing.
| Printer | Exposure (s) | Base Exp. (s) | Base Layers | Lift Height (mm) | Lift Speed (mm/min) | Retract Speed (mm/min) |
|---|---|---|---|---|---|---|
| Phrozen Sonic Mini 8K S | 5 | 20 | 3 | 4+4 | 60+120 | 180+60 |
| Elegoo Saturn 3 Ultra | 4 | 20 | 3 | 4+4 | 90+180 | 180+90 |
| Creality HALOT-MAGE Pro | 2 | 25 | 3 | 10 | 120+180 | 180+120 |
| Anycubic Photon Mono 4 Ultra | 3 | 20 | 3 | 5+3 | 90+240 | 240+60 |
| Elegoo Saturn 4 Ultra | 4 | 25 | 3 | Device default standard parameters | ||
| Anycubic Photon Mono M7 Pro | 3 | 30 | 3 | 5+4 | 120+240 | 360+120 |
TDS Post-Processing & Storage
- 1
Wash — Clean with isopropyl alcohol in an ultrasonic cleaner. Handle gently; avoid high-frequency or forceful brushing that could damage the surface.
- 2
Dry — Blow the printed part completely dry with a hair dryer or similar tool.
- 3
Remove supports — Remove supports before post-curing; removal after curing can damage support-contact areas.
- 4
Conditional post-cure — When additional toughness is required, UV cure for 5 minutes.
Storage
Store in a cool, dry place below 25°C, away from direct sunlight and visible light to prevent polymerization or gelation.
Safety and use status
The current TDS states that the resin is not approved for food, drink, or medical application on the human body. Review the SDS and verify current intended use and regulatory status before any clinical use.
Printers Listed in the TDS
Processing technology: LCD/DLP. These are the only representative printer models named in the current TDS.
Use the profiles as calibration starting points, not as universal compatibility approval.
Temporary-Restoration Workflow Described in the TDS
The TDS describes RF-GQ-06 for temporary teeth, bridges, inlays, veneers, and temporary crowns. Because the same TDS states that the resin is not approved for medical application on the human body, verify the current intended use and regulatory status before any clinical use.
RF-GQ-06 Technical FAQ
Planning a material trial? Read our temporary vs permanent crown resin selection guide for the dental lab qualification checklist and documentation checks.
- QWhat does the TDS describe RF-GQ-06 for?
Temporary teeth, bridges, inlays, veneers, and temporary crowns in the workflows named by the TDS. This description is not a regulatory approval. - QWhat are the key TDS values?
Shore D 90, tensile strength 90 MPa, elongation at break 9%, flexural strength 110 MPa, and flexural modulus 2100 MPa. - QWhich printing technologies are listed?
LCD and DLP, with starting profiles for the six representative devices shown above. - QHow should printed parts be cleaned?
Use isopropyl alcohol with ultrasonic cleaning, then blow dry completely and remove supports before post-curing. - QDoes this page claim approved clinical use?
No. Confirm current intended use, regulatory status, and the valid local protocol before any clinical use. - QHow should a lab compare temporary and permanent crown resins?
RF-GQ-06 is described for temporary crown and bridge workflows; RF-YG-08 has separate 25% and 55% crown formulations. Select by the documented workflow, shade and matching printer profile. A strength value alone does not establish interchangeability. - QHow do retail and B2B resin purchasing differ?
For retail resin purchases, open the matching store product. For bulk supply or distributor pricing, send a B2B resin inquiry. Include the resin, required quantity, printer model and target market so the order and current material documentation can be matched to your workflow.
Evaluate this resin for your workflow
Share your printer model and material requirements to request TDS starting profiles, samples or a B2B resin quote.
Explore More Materials
Compare dental 3D printing resins by material data, laboratory workflow and printer-specific calibration.
