Permanent Crown Resin 25%
Key Features
The current TDS identifies RF-YG-08 25% as an A2 resin processed by LCD or DLP. It reports high strength, good hardness, high precision and high-temperature resistance, with 120 MPa tensile strength, 140 MPa flexural strength and a 90°C HDT at 0.45 MPa. Its application field states “Dental model,” while the safety section says the resin is not approved for medical application on the human body.
Use-status notice
Before any clinical or patient-contact use, confirm the current intended use, regulatory status and applicability with RayForm and the responsible local professional.
Basic Performance
| Properties | Unit | Standard | Result |
|---|---|---|---|
| Density | g/cm³ | ASTM D792 | 1.30–1.40 |
| Viscosity | mPa·s | ASTM D445 | 4500 |
| Hardness | Shore D | ASTM D2240 | 94D |
| Tensile Strength | MPa | ASTM D638 | 120 |
| Elongation at Break | % | ASTM D638 | 6 |
| Flexural Strength | MPa | ASTM D790 | 140 |
| Flexural Modulus | MPa | ASTM D790 | 2500 |
| HDT @ 0.45 MPa | °C | ASTM D648 | 90 |
Printing Parameters
The current TDS lists the following six representative machine parameters as starting references.
| Printer | Exposure (s) | Base Exp. (s) | Base Layers | Lift Height (mm) | Lift Speed (mm/min) | Retract Speed (mm/min) |
|---|---|---|---|---|---|---|
| Phrozen Sonic Mini 8K S | 5.5 | 25 | 3 | 4+4 | 60+120 | 180+60 |
| Creality Halot-MAGE Pro | 1.8 | 10 | 3 | 8+2 | 60+180 | 180+60 |
| Elegoo Saturn 4 Ultra | 3.3 | 20 | 3 | Default standard parameters of the device | ||
| Anycubic Mono 4 Ultra | 4.3 | 25 | 3 | 4+4 | 90+120 | 240+90 |
| Elegoo Saturn 3 Ultra | 4.1 | 25 | 3 | 4+4 | 60+180 | 180+90 |
| Anycubic M7 Pro | 3 | 20 | 3 | 4+4 | 60+120 | 180+60 |
Post-Processing & Storage
-
1
Wash – Clean the model with isopropyl alcohol in an ultrasonic cleaner. Avoid high-frequency shock or forceful brushing to protect surface details.
-
2
Dry – Thoroughly blow the model dry with a hair dryer or similar tool.
-
3
Remove Supports – Remove supports before post-curing. Removing supports after post-cure may damage the contact surface at support points.
-
4
Optional Post-Cure – For occasions where certain toughness is required, UV cure for 5 minutes. Store printed parts in a cool, dry place.
Storage
Store below 25°C in a cool place away from direct sunlight. Keep away from visible light to prevent resin polymerization and gelation.
Safety
Eyes: Flush with clean water for at least 20 minutes and seek medical attention immediately. Skin: Remove contaminated clothing and wash thoroughly with soap and water. Not approved for food, drink, or medical application on the human body. See MSDS for details.
Machine Compatibility
RF-YG-08 25% is processed by LCD and DLP. The current TDS provides reference parameters for these representative printers.
Use the TDS values as starting points and validate them for your equipment and workflow.

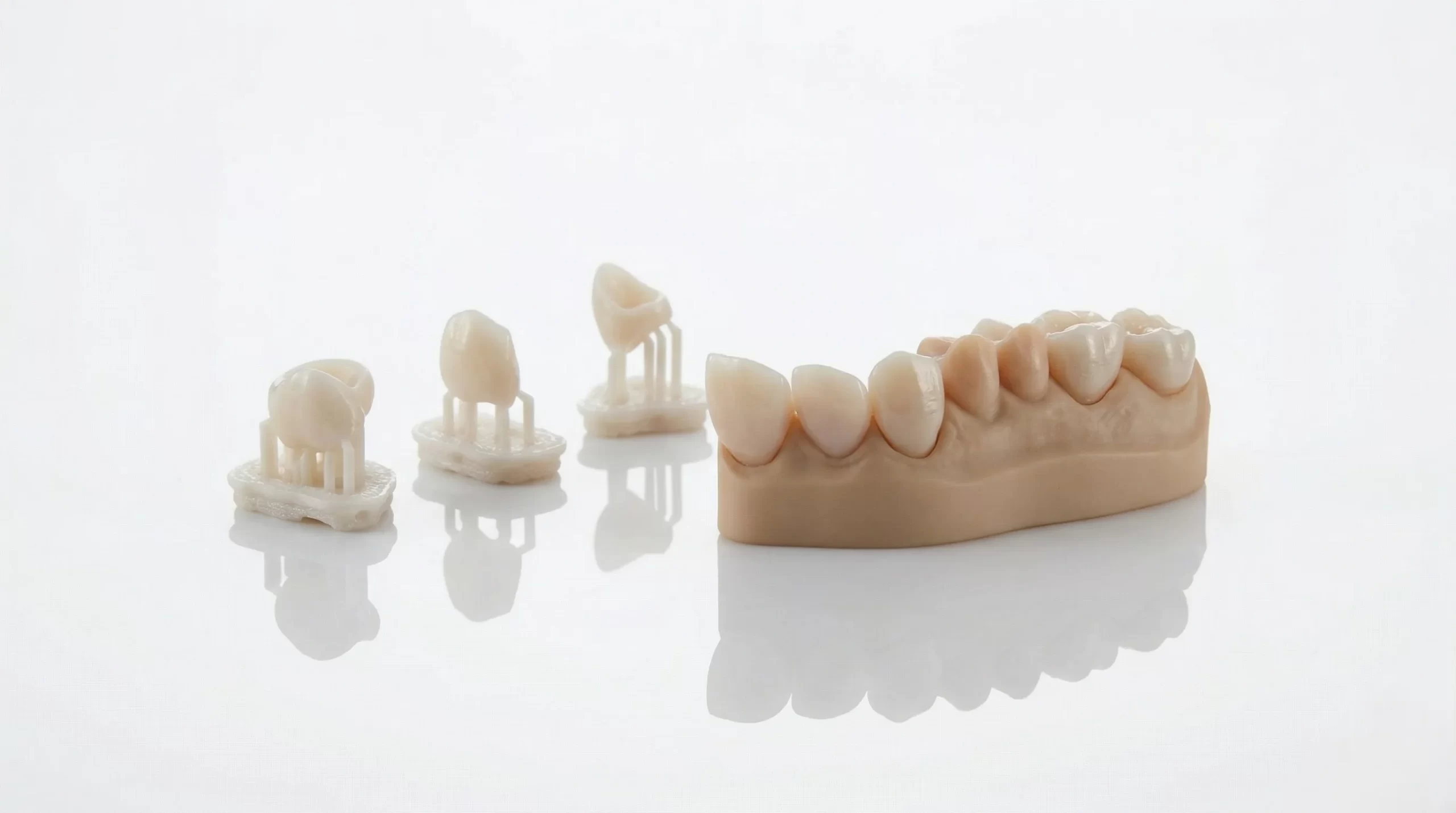

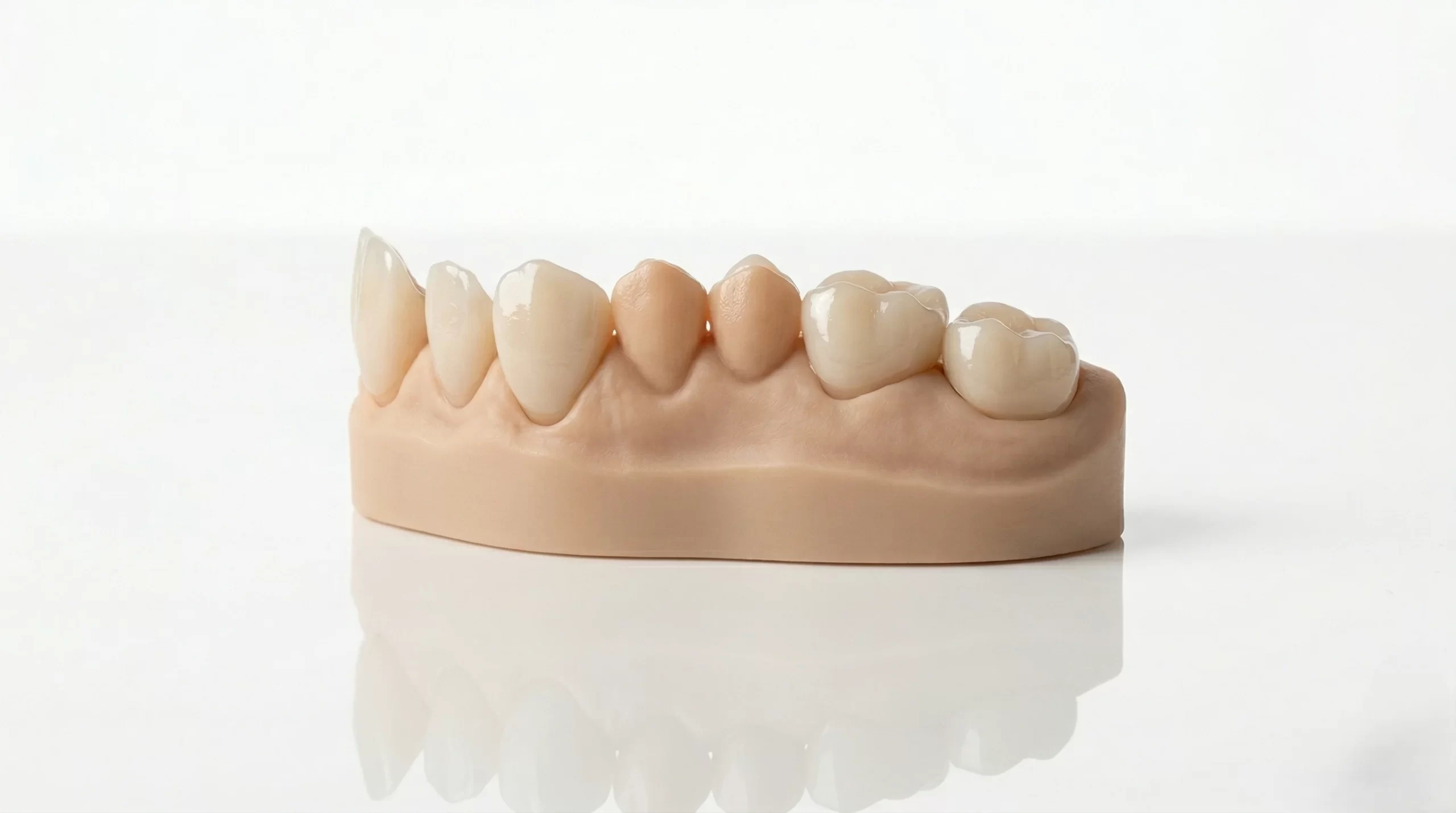

TDS-Described Dental Workflow
The product name and TDS narrative describe permanent-crown and restorative workflows, but the same document lists the application as “Dental model” and states that the resin is not approved for medical application on the human body. Confirm current intended use and applicable documentation before patient contact.
Frequently Asked Questions
- QWhat are the core TDS values for RF-YG-08 25%?
Density 1.30–1.40 g/cm³, viscosity 4500 mPa·s, Shore D 94, tensile strength 120 MPa, elongation 6%, flexural strength 140 MPa, flexural modulus 2500 MPa and HDT 90°C at 0.45 MPa. - QWhich printing technologies and machines are listed?
The TDS specifies LCD/DLP and provides starting parameters for Phrozen Sonic Mini 8K S, Creality Halot-MAGE Pro, Elegoo Saturn 4 Ultra and Saturn 3 Ultra, Anycubic Mono 4 Ultra and M7 Pro. - QHow should parts be post-processed?
Clean with IPA in an ultrasonic cleaner without high-frequency shock or forceful brushing, dry fully, remove supports before post-curing, and use 5 minutes of UV curing when toughness is required. - QDoes this page establish clinical approval?
No. The current TDS lists “Dental model” as the application and states that the resin is not approved for medical application on the human body. Confirm current product and market documentation before patient contact.
