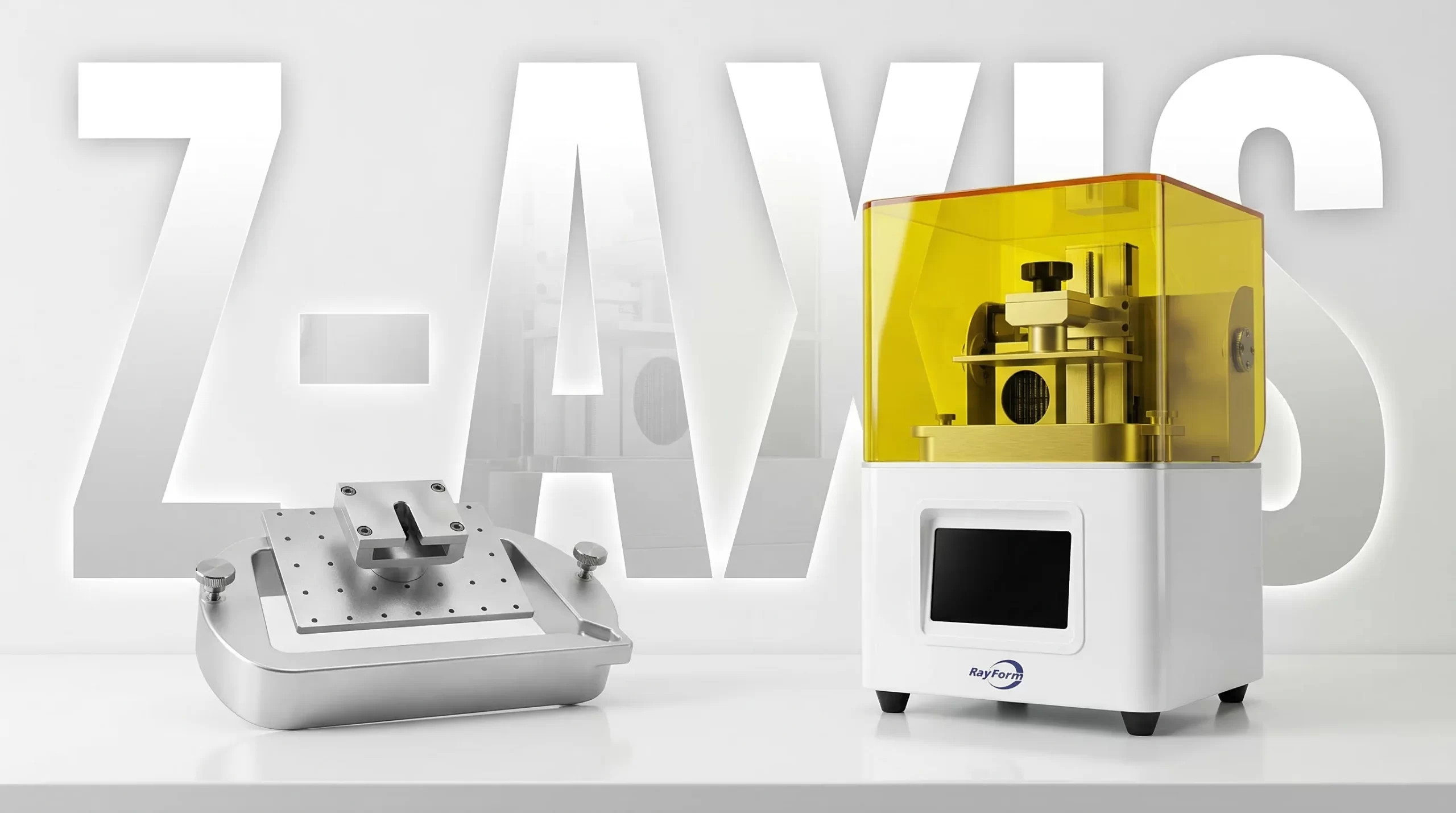

RayForm RF-3024D 4K LCD dental 3D printer, studio visualization

Studio visualization

RayForm · Desktop LCD

RF-3024D 4K LCD dental 3D printer

Compact by design.Ready for your bench.

A compact 405 nm 4K LCD dental 3D printer with a 143 × 90 × 80 mm build volume for printing dental models in dental practices and laboratories.

143 × 90 × 80mmBuild volume, standard platform
405nmWavelength
60mm/hMaximum print speed, as listed
13kgMachine weight
At a glance

RF-3024D at a glance

The RayForm RF-3024D is a compact 405 nm MSLA (UV LCD) dental 3D printer for printing dental models in-house. It offers a 143 × 90 × 80 mm standard build volume in a 300 × 280 × 430 mm, 13 kg machine, with a COB light source and a CHITUBOX file workflow.

143 × 90 × 80mm

Build volume

Standard platform. The manual also lists an 85 × 85 × 80 mm small platform.

405nm

Wavelength

MSLA / UV LCD exposure. The RayForm resin catalog lists its dental resins for 385–405 nm LCD and DLP printers.

35µm

Pixel size

4K LCD; the manual lists a 6.6-inch screen.

0.01–0.15mm

Layer thickness

Listed in the brochure and the RF-3024D manual.

≤ 60mm/h

Print speed

Brochure maximum; actual speed depends on resin, layer thickness and settings.

13kg

Machine

300 × 280 × 430 mm, 72 W rated power.

Build volume

Drawn to scale, in millimetres.

The standard platform gives a 143 × 90 × 80 mm build volume. The dashed outline shows the 8K LCD build volume at the same scale.

Build volume

Isometric view. Every axis uses the same scale.

Isometric drawing of the RF-3024D build volume to scale4K standard platform 143 × 90 × 80 mm8K build volume, outline143 mm90 mm80 mm
12,870 mm²standard platform area
7,225 mm²small platform area (85 × 85 mm)

Platform footprint

Top view of every desktop LCD platform at one scale. Hover a row to find it.

Build platforms of the RayForm desktop LCD range drawn to the same scale143 × 90 mm
  • 8K LCD · RF-3020D228 × 128 mm
  • RF-DL900198 × 123 mm
  • 4K LCD, standard platform143 × 90 mm
  • RF-DL600134 × 84 mm
  • 4K LCD, small platform85 × 85 mm
Schematic of an LCD (MSLA) resin printer: light source, LCD mask, resin vat and build platform1234Schematic illustration, not to scale
How it prints

Light, masked one layer at a time.

In MSLA (masked stereolithography) printing, light from below passes through an LCD that shows the shape of each layer. The exposed resin cures in the vat, and the build platform lifts the part before the next layer.

  1. 1

    COB light source

    Centralized COB light at 405 nm. The brochure lists light uniformity up to 92%.

  2. 2

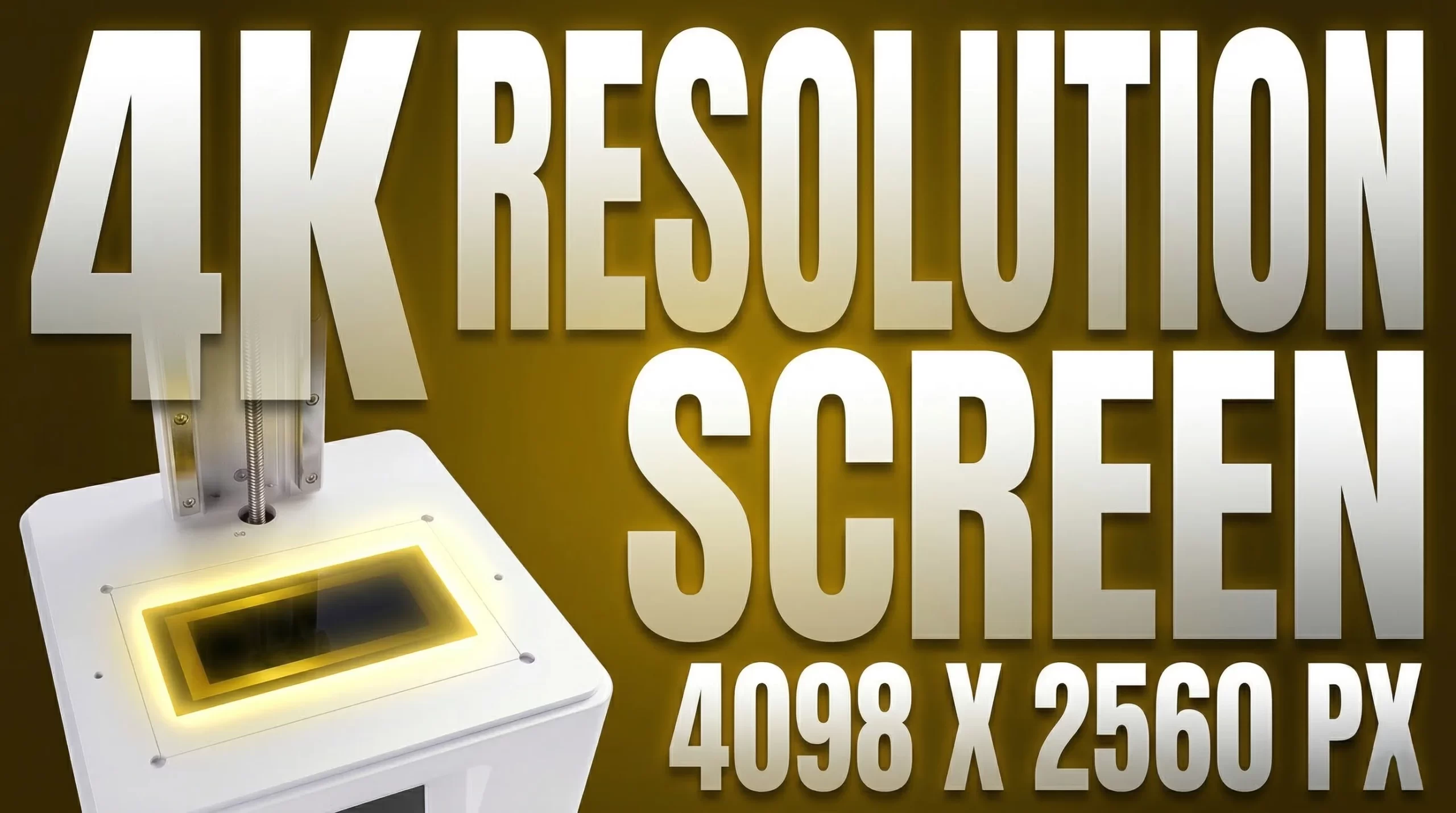

    4K LCD mask

    The LCD shows the shape of each layer. 35 µm pixels; the manual lists a 6.6-inch 4K screen.

  3. 3

    Release film and resin vat

    A release-film structure reduces peeling force. The vat is replaceable; the manual describes a temperature controller with a heated vat.

  4. 4

    Build platform

    Lifts the part layer by layer: standard 143 × 90 mm or small 85 × 85 mm platform, 80 mm build height.

Features

Designed for everyday model work.

Each point below comes from the LCD series brochure or the RF-3024D product manual.

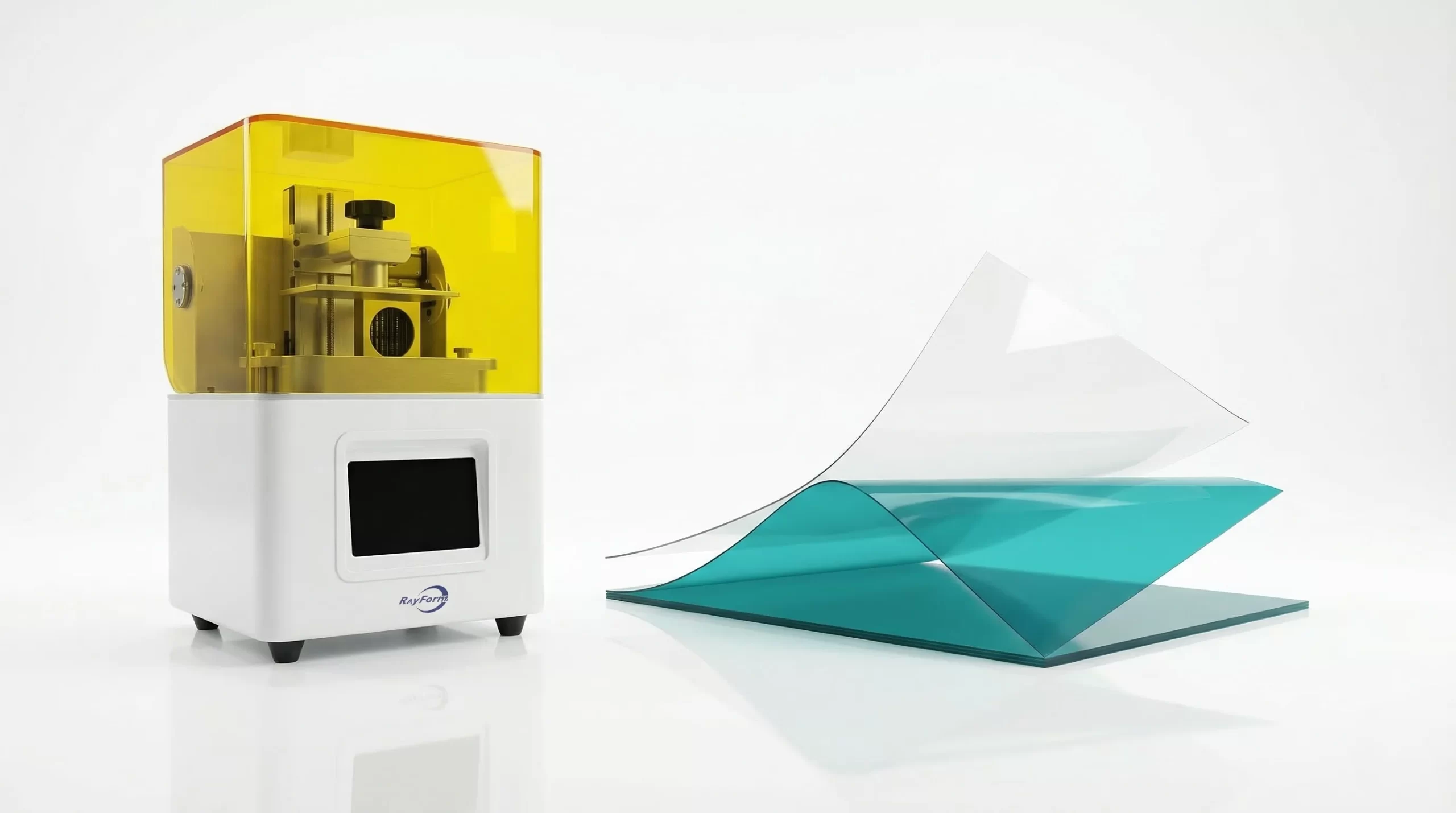

Release-film structure

Reduces peeling force between layers. The brochure lists printing speeds up to 60 mm/h; actual speed depends on resin, layer thickness and settings.

Source: Brochure, p. 2

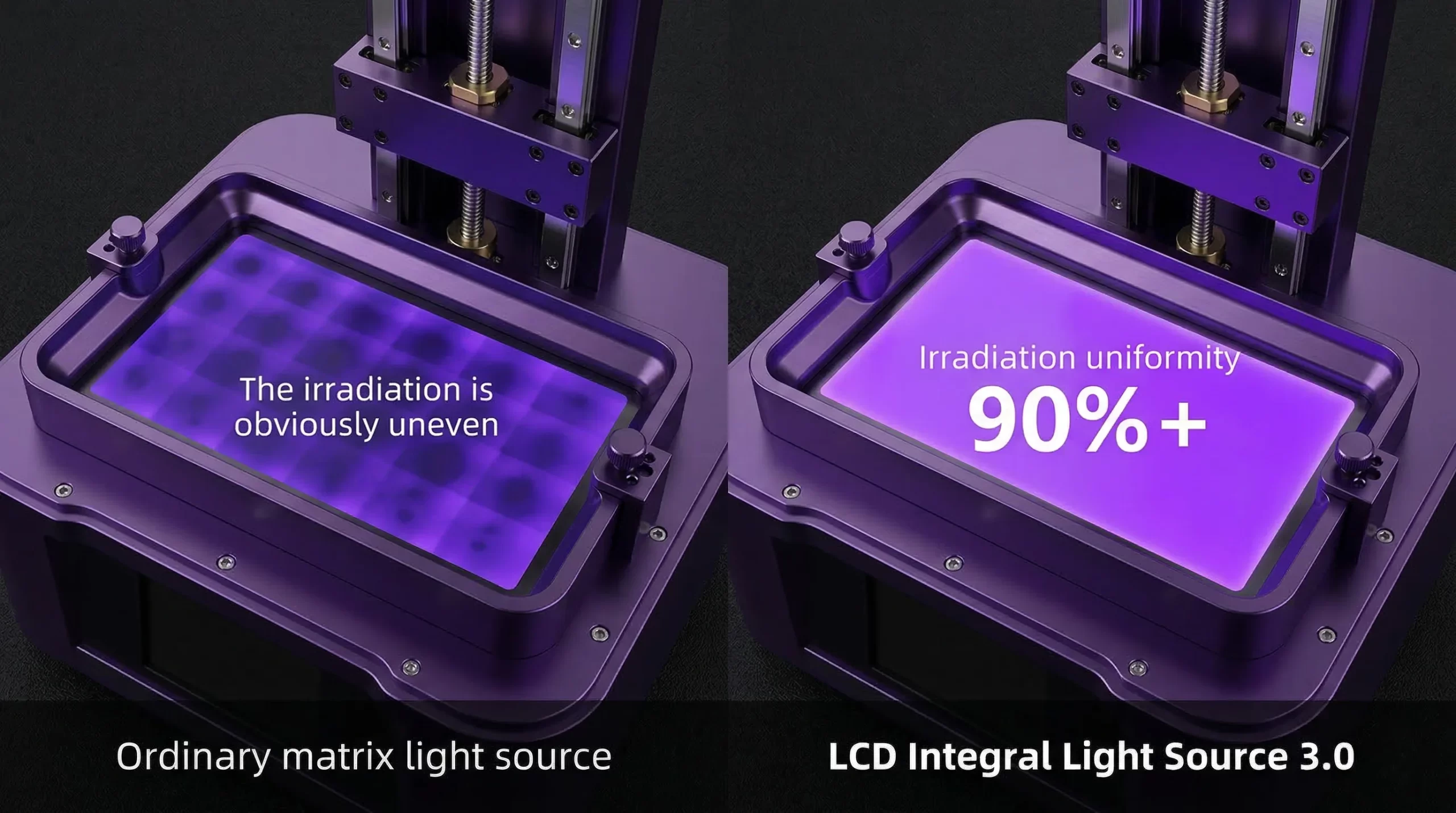

COB centralized light source

A centralized COB light source design, with light uniformity listed at up to 92%.

Source: Brochure, p. 2

Two build platforms

A standard 143 × 90 × 80 mm platform for full jobs and a small 85 × 85 × 80 mm platform for smaller ones.

Source: Manual, p. 7

Temperature control

The manual describes a temperature controller and heated resin vat for printing when the room is too cool. Follow each resin's temperature instructions.

Source: Manual, pp. 3 and 9

5-inch touchscreen

Operate the printer on a 5-inch capacitive touchscreen running the RayForm 3D Printer System.

Source: Manual, p. 7

USB, WLAN and RJ45

Slice in CHITUBOX and send .ctb files by USB drive or WLAN. The manual lists an RJ45 100M port and 2.4 GHz Wi-Fi.

Source: Manual, pp. 7–8
Applications

Printed with RayForm dental resins.

Real photographs of parts printed with RayForm resins. The RayForm resin catalog lists its dental resins for 385–405 nm LCD and DLP printers. This printer uses 405 nm; ask us for a print profile before production.

Reference print settings from the RF-3024D manual

RayForm lab data, for reference only; results depend on the actual environment. Test with these settings first and contact us before changing them for speed.

ParameterDental Model ResinInvisible Denture Base ResinTemp C&B Resin
Layer thickness0.05 mm0.05 mm0.05 mm
Exposure time3.5 s6.5 s3.7 s
Rest time after retract1.5 s0 s0 s
Bottom exposure time20 s30 s35 s
Bottom layers344
Lifting distance7 mm8 mm7 mm
Retract distance7 mm8 mm7 mm
Lifting speed120 mm/min60 mm/min90 mm/min
Anti-alias222
RF-3024D unboxing and setup video thumbnailPlay video · 1:45
Video

RF-3024D unboxing and setup

Unboxing and first setup of the RayForm RF-3024D 4K LCD dental 3D printer. The video plays here on the page.

Length
1:45
Channel
Rayform3D Dental
Specifications

RF-3024D specifications

Printing
ModelRF-3024D
Printing technologyMSLA / UV LCD
Wavelength405 nm
LCD screen6.6-inch 4KManual
Pixel size35 µmBrochure
Build volume, standard platform143 × 90 × 80 mm
Build volume, small platform85 × 85 × 80 mmManual
Layer thickness0.01–0.15 mm
Light sourceCOB centralized light sourceUniformity up to 92% (brochure)
Maximum printing speedUp to 60 mm/hDepends on resin, layer thickness and settings
Resin vatReplaceableTemperature controller with heated vat (manual)
Software and connectivity
Printer systemRayForm 3D Printer SystemLinux, as listed in the brochure
SlicerCHITUBOXSaves .ctb print files (manual)
Listed file formatsSTL, OBJBrochure
Touchscreen5-inch capacitiveManual
ConnectivityUSB drive, WLANInterfaces: RJ45 100M, Wi-Fi 2.4 GHz (manual)
Machine
Machine size (W × D × H)300 × 280 × 430 mm
Weight13 kg
Power100–240 V, 50/60 Hz, 72 W rated24 V / 3 A power supply (manual)

Sources: RayForm LCD series brochure (p. 2) and RF-3024D product manual (pp. 3–9). Pixel size is the size of one LCD pixel, not a finished-part tolerance; validate the complete printer, resin and post-processing workflow. Specifications may change; confirm the current configuration in your quotation.

Workflow

From file to finished part.

Plan slicing, printing, washing and post-curing together so operators can repeat the same documented process.

01 / 03

Prepare the print file

Import STL or OBJ models into CHITUBOX, add supports and save a .ctb file. Send it by USB drive or WLAN.

02 / 03

Print with a resin profile

Start from the manual's reference settings for your RayForm resin, then validate a representative job.

03 / 03

Wash and post-cure

Follow each resin's cleaning and post-curing instructions before use.

FAQ

Questions before you buy.

Not covered here? Send your application and files, and we will answer with your setup in mind.

Is the RF-3024D suitable for a dental office?

Yes, if you mainly print dental models in-house. It has a 143 × 90 × 80 mm standard build volume in a 300 × 280 × 430 mm, 13 kg machine with a 72 W rated power. Plan bench space for cleaning and post-curing equipment as well.

What wavelength does it use?

405 nm. The RayForm resin catalog lists its dental resins for 385–405 nm LCD and DLP printers. For a resin from another supplier, check that its manufacturer lists 405 nm LCD printers and confirm the print profile before production.

Which slicer does it use, and how are files sent?

The RF-3024D manual lists CHITUBOX as the slicer. Save .ctb print files and send them by USB drive or WLAN; the manual also lists an RJ45 100M port and 2.4 GHz Wi-Fi.

Should I choose the 4K or the 8K LCD printer?

Choose by build area and height. The 4K standard build volume is 143 × 90 × 80 mm. The 8K printer offers 228 × 128 × 235 mm in a larger 350 × 330 × 600 mm, 22 kg machine. For larger build areas and automated resin handling, compare the industrial DLP range.

How much does the 4K dental 3D printer cost?

The current price of each platform option is listed on the RayForm store product page. For shipping, configuration and consumables, request a quotation with your destination country.

Does pixel size equal part accuracy?

No. Pixel size is the physical size of one LCD pixel; it is not a finished-part accuracy specification. Validate dimensional results with representative files, the selected resin and the complete post-processing workflow.

How is output estimated?

Use the actual STL layout, model height, layer thickness and resin settings. Request a sample-job assessment before setting a daily production target.

Request a quote

Plan your RF-3024D setup.

Share the application, an STL sample, target quantity per shift and destination country. Include your current cleaning and curing equipment to help define the scope of the quotation.
