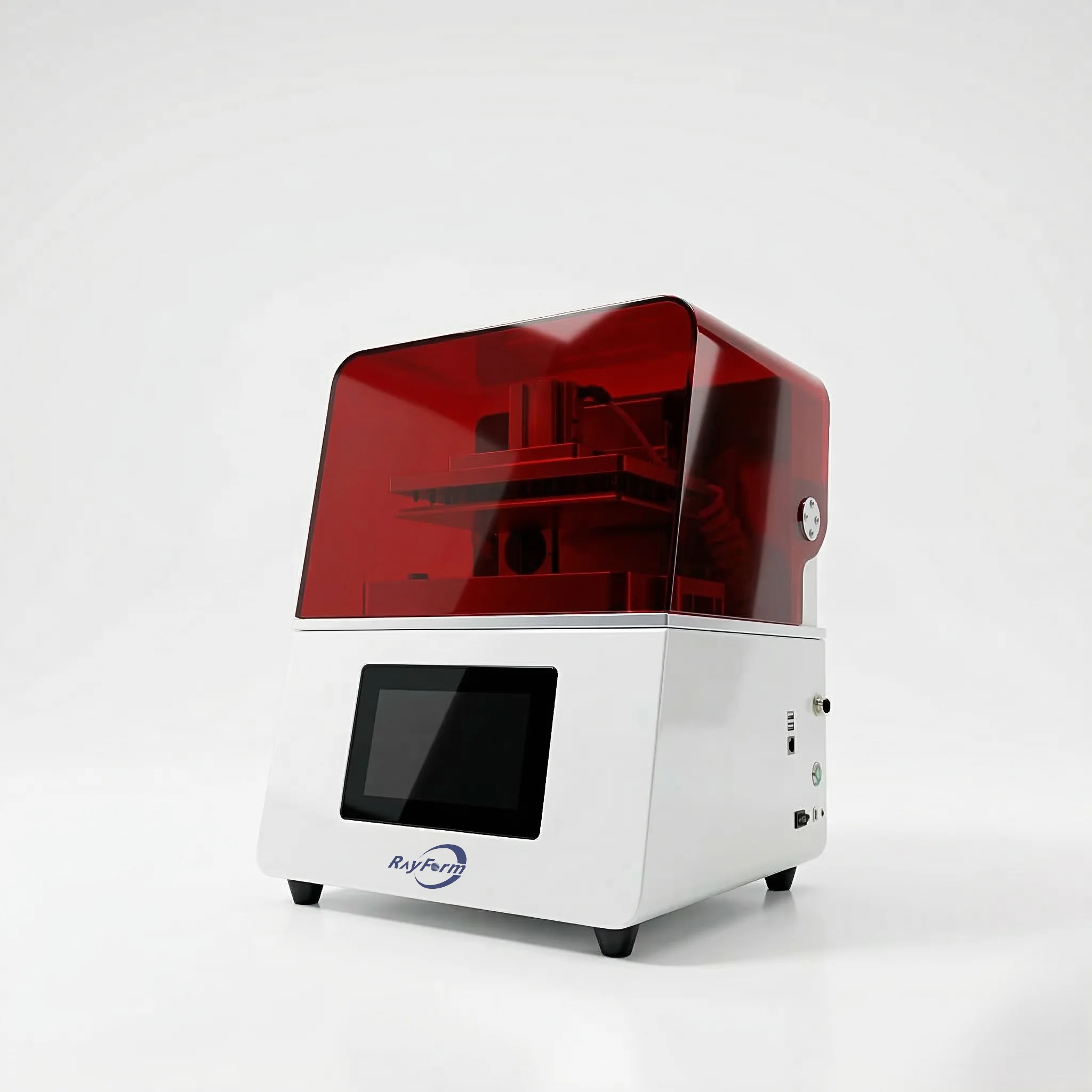

RayForm 8K LCD dental 3D printer, studio visualization

Studio visualization

RayForm · Desktop LCD

8K LCD dental 3D printer

More room per job.Built for lab models.

A 405 nm 8K LCD dental 3D printer with a 228 × 128 × 235 mm build volume, a 7680 × 4320 LCD and 29.7 µm pixels for dental model production.

228 × 128 × 235mmBuild volume
7680 × 4320pxLCD resolution
29.7µmPixel size
60mm/hMaximum print speed, as listed
At a glance

8K LCD at a glance

The RayForm 8K LCD dental 3D printer is a 405 nm MSLA (UV LCD) printer for dental model production. It combines a 228 × 128 × 235 mm build volume with a 7680 × 4320 LCD and 29.7 µm pixels in a 350 × 330 × 600 mm, 22 kg machine.

228 × 128 × 235mm

Build volume

2.3 times the XY area of the 4K standard platform, with 235 mm of build height.

33.2million px

LCD resolution

7680 × 4320 pixels across the build platform.

29.7µm

Pixel size

Size of one LCD pixel, as listed in the brochure.

0.025–0.1mm

Layer thickness

As listed in the LCD series brochure.

405nm

Wavelength

The RayForm resin catalog lists its dental resins for 385–405 nm LCD and DLP printers.

22kg

Machine

350 × 330 × 600 mm, 128 W rated power.

Build volume

Drawn to scale, in millimetres.

The 8K platform measures 228 × 128 mm with 235 mm of build height. The drawing uses the same millimetre scale on every axis.

Build volume

Isometric view. Every axis uses the same scale.

Isometric drawing of the 8K LCD build volume to scale8K build volume 228 × 128 × 235 mm228 mm128 mm235 mm
29,184 mm²XY platform area
2.3×the 4K standard platform area

Platform footprint

Top view of every desktop LCD platform at one scale. Hover a row to find it.

Build platforms of the RayForm desktop LCD range drawn to the same scale228 × 128 mm
  • 8K LCD · RF-3020D228 × 128 mm
  • RF-DL900198 × 123 mm
  • 4K LCD, standard platform143 × 90 mm
  • RF-DL600134 × 84 mm
Schematic of an LCD (MSLA) resin printer: light source, LCD mask, resin vat and build platform1234Schematic illustration, not to scale
How it prints

Light, masked one layer at a time.

In MSLA (masked stereolithography) printing, light from below passes through an LCD that shows the shape of each layer. The exposed resin cures in the vat, and the build platform lifts the part before the next layer.

  1. 1

    COB light source

    Centralized COB light at 405 nm. The brochure lists light uniformity up to 92%.

  2. 2

    8K LCD mask

    7680 × 4320 pixels at 29.7 µm show the shape of each layer.

  3. 3

    Release film and resin vat

    A release-film structure reduces peeling force. The resin vat is replaceable.

  4. 4

    Build platform

    A 228 × 128 mm platform with 235 mm of build height lifts the part layer by layer.

Features

Designed for model batches.

Each point below comes from the RayForm LCD series brochure.

8K LCD, 29.7 µm pixels

A 7680 × 4320 LCD (about 33.2 million pixels) masks each layer across the 228 × 128 mm platform.

Source: Brochure, p. 2

235 mm build height

A 228 × 128 × 235 mm build volume: 2.3 times the XY area of the 4K standard platform.

Source: Brochure, p. 2

Release-film structure

Reduces peeling force between layers. Printing speeds are listed at up to 60 mm/h; actual speed depends on resin, layer thickness and settings.

Source: Brochure, p. 2

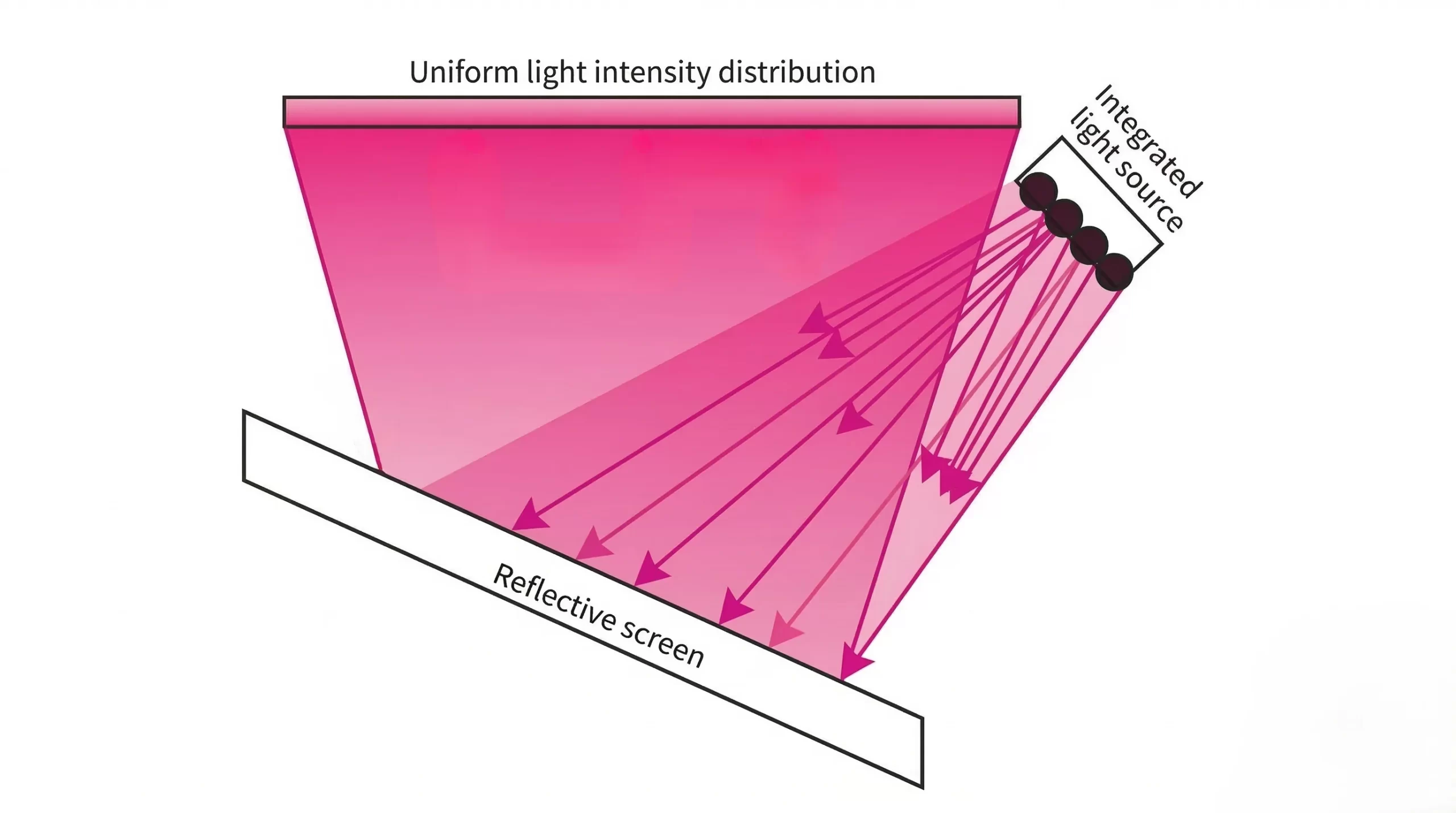

COB centralized light source

A centralized COB light source design, with light uniformity listed at up to 92%.

Source: Brochure, p. 2

Replaceable resin vat

The brochure lists the resin vat as replaceable.

Source: Brochure, p. 2

RAYFORM 3D PRINT SYSTEM

The brochure lists the RAYFORM 3D PRINT SYSTEM on Linux, with STL and OBJ file formats.

Source: Brochure, p. 2
Small-scale clear aligner production video thumbnailPlay video · 1:40
Video

Small-scale clear aligner production

A compact clear aligner production workflow with desktop 3D printing, thermoforming and trimming for small labs and practices. The video plays here on the page.

Length
1:40
Channel
Rayform3D Dental
Specifications

8K LCD 3D printer specifications

Printing
Printing technologyMSLA / UV LCD
Wavelength405 nm
LCD resolution7680 × 4320 pixels
Pixel size29.7 µm
Build volume228 × 128 × 235 mm
Layer thickness0.025–0.1 mm
Light sourceCOB centralized light sourceUniformity up to 92%
Maximum printing speedUp to 60 mm/hDepends on resin, layer thickness and settings
Resin vatReplaceable
Software
SoftwareRAYFORM 3D PRINT SYSTEM
Operating systemLinux
Listed file formatsSTL, OBJ
Machine and environment
Machine size (W × D × H)350 × 330 × 600 mm
Weight22 kg
Power100–240 VAC, 50/60 Hz, 128 W rated
Operating environment22–26 °C, relative humidity below 60%

Source: RayForm LCD series brochure (p. 2). Pixel size is the size of one LCD pixel, not a finished-part tolerance; validate the complete printer, resin and post-processing workflow. Specifications may change; confirm the current configuration in your quotation.

Workflow

From file to finished part.

Plan slicing, printing, washing and post-curing together so operators can repeat the same documented process.

01 / 03

Prepare the print file

Prepare STL or OBJ files; the brochure lists the RAYFORM 3D PRINT SYSTEM software.

02 / 03

Print with a resin profile

Ask us for print settings matched to the 8K printer and your resin, then validate a representative job.

03 / 03

Wash and post-cure

Follow each resin's cleaning and post-curing instructions before use.

FAQ

Questions before you buy.

Not covered here? Send your application and files, and we will answer with your setup in mind.

Is the 8K LCD printer suitable for a dental lab?

It is designed for printing dental models. The 228 × 128 mm platform and 235 mm build height give more room for arranging models than the 4K printer; estimate output with your own STL layout, resin and layer thickness.

What wavelength does it use?

405 nm. The RayForm resin catalog lists its dental resins for 385–405 nm LCD and DLP printers. For a resin from another supplier, check that its manufacturer lists 405 nm LCD printers and confirm the print profile before production.

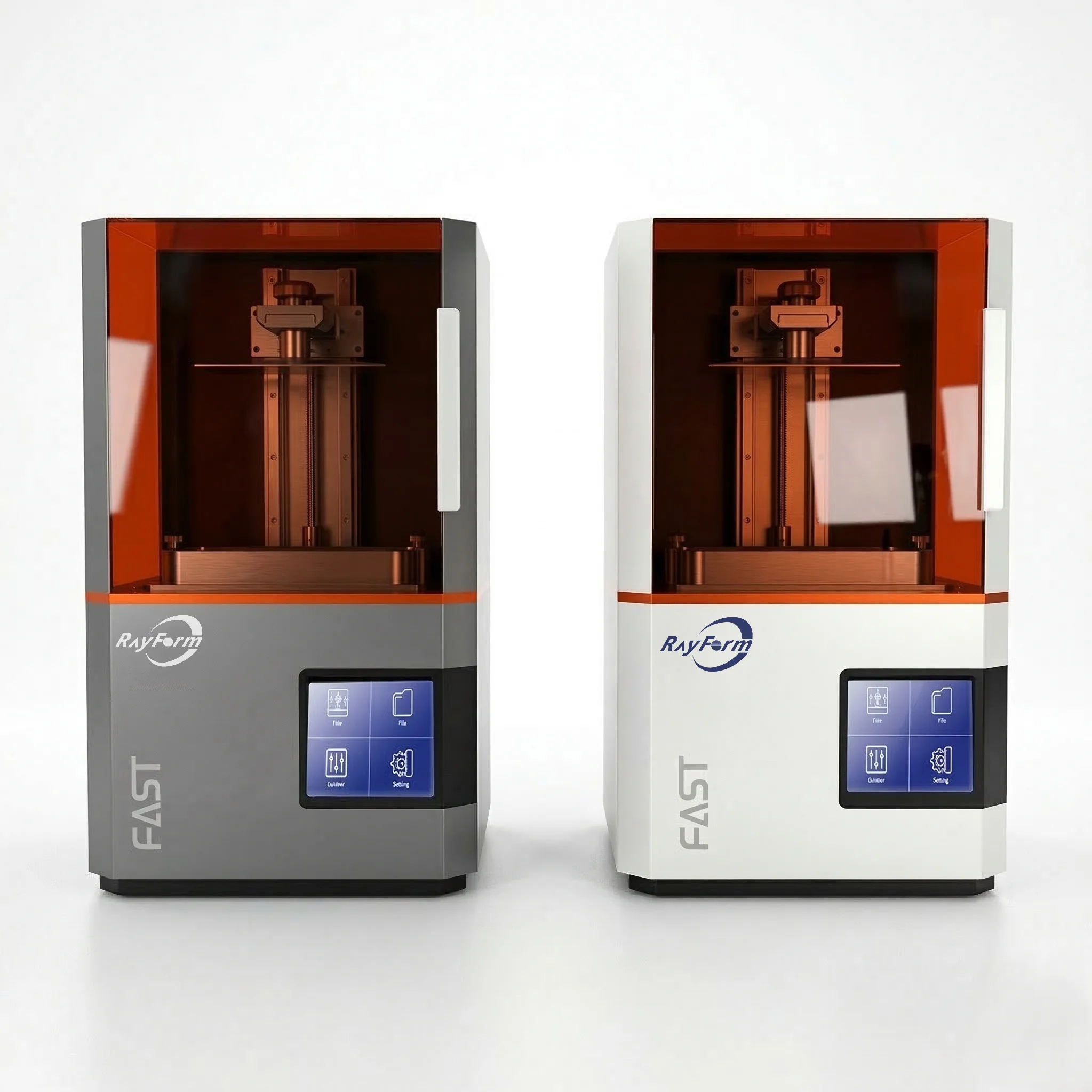

How does the 8K LCD printer differ from the RF-3020D?

Both list an 8K LCD (7680 × 4320, 29.7 µm pixels) and a 228 × 128 × 235 mm build volume. Their documents differ in enclosure (dome lid or front door), power input (100–240 VAC or 200–240 VAC), file formats (STL and OBJ, or STL) and the operating system listed (Linux or Windows 10).

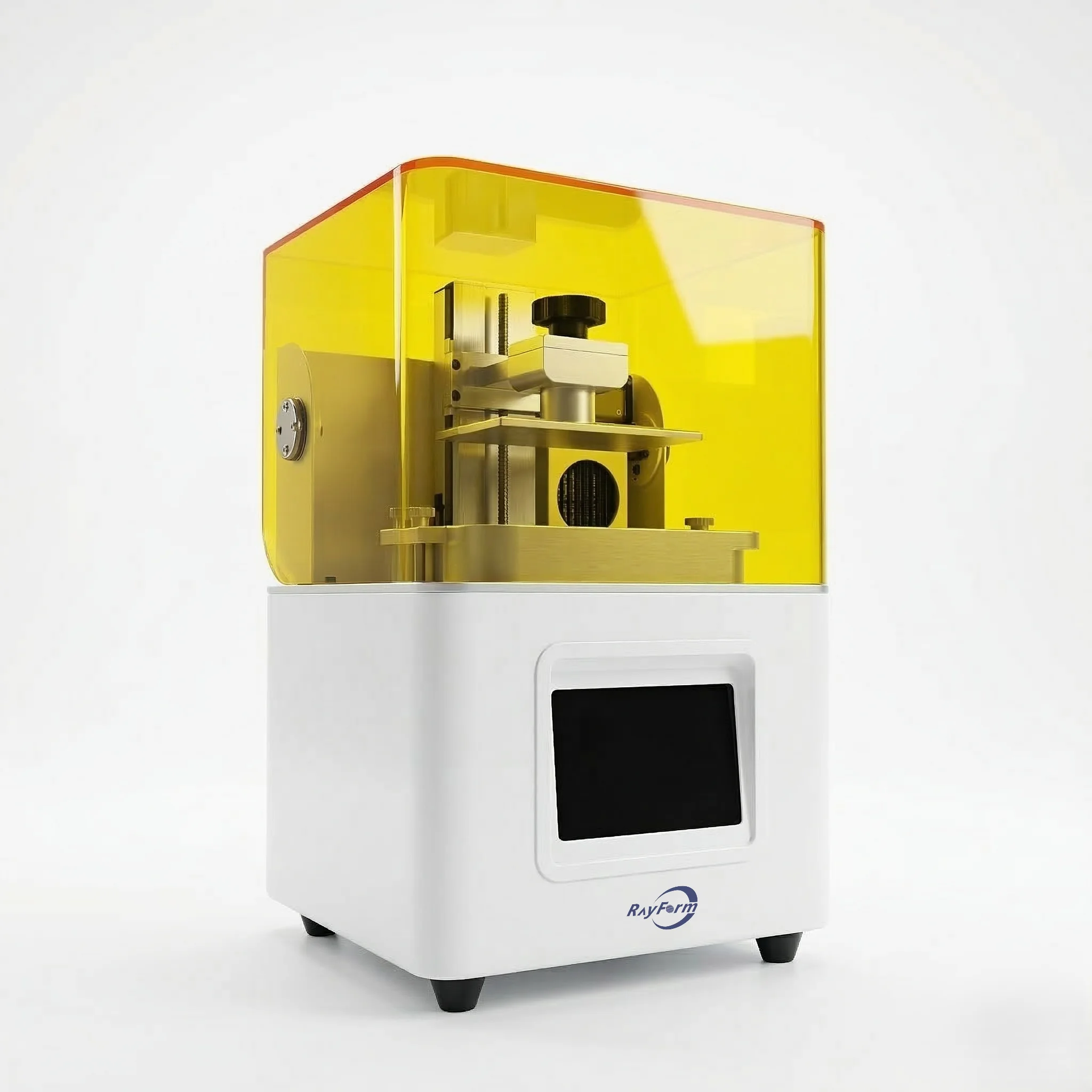

Should I choose the 8K or the 4K LCD printer?

Choose by build area and available space. The 8K printer offers a 228 × 128 × 235 mm build volume in a 350 × 330 × 600 mm, 22 kg machine. The 4K printer has a 143 × 90 × 80 mm standard build volume in a 300 × 280 × 430 mm, 13 kg machine.

How much does the 8K dental 3D printer cost?

The current price is listed on the RayForm store product page. For shipping, configuration and consumables, request a quotation with your destination country.

Does pixel size equal part accuracy?

No. Pixel size is the physical size of one LCD pixel; it is not a finished-part accuracy specification. Validate dimensional results with representative files, the selected resin and the complete post-processing workflow.

How is output estimated?

Use the actual STL layout, model height, layer thickness and resin settings. Request a sample-job assessment before setting a daily production target.

Request a quote

Plan your 8K LCD setup.

Share the application, an STL sample, target quantity per shift and destination country. Include your current cleaning and curing equipment to help define the scope of the quotation.
